437 HT JCB 437 HT Specifications & Technical Data (2016—2019)

The JCB 437 HT is a wheel loader manufactured by JCB from 2016 to 2019. It has a weight of 14.79 tons and a transport length of 7.…

The JCB 437 HT is a wheel loader manufactured by JCB from 2016 to 2019. It has a weight of 14.79 tons and a transport length of 7.3 meters. The bucket capacity ranges from 2.3 to 2.7 cubic meters, with a maximum discharge height of 2.79 meters. The travel speed of this machine is 40 km/h, and it has a transport width of 2.6 meters and a transport height of 3.36 meters. The lifting force is 147 kN, and the turning radius outside is 6.021 meters. It is equipped with special features such as air conditioning and a quick hitch hydraulic system.

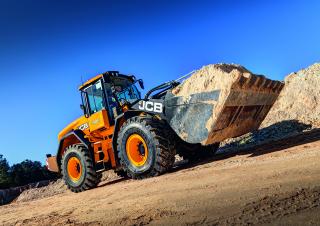

Wheel Loaders JCB 437 HT
Wheel Loaders JCB 437 HT
Wheel Loaders JCB 437 HT
Wheel Loaders JCB 437 HT

Visit JCB live at

Technical specs - 437 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.79 t
Standard tyres
20.5R25 XHA2
Bucket capacity
2.3 m³
Bucket capacity min.
2.3 m³
Bucket capacity max.
2.7 m³
Steering mode
KL
Transport length
7.3 m
Transport width
2.6 m
Transport height
3.36 m
Travel speed
40 km/h
Max. discharge height
2.79 m
Turning radius outside
6.021 m
Lifting force
147 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
136 kW
Displacement
6.7 l
Revolutions at max torque
1950 rpm
Max. torque
840/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

More technical details, like: bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 437 HT FAQ

When was the JCB 437 HT manufactured?

The JCB 437 HT was manufactured from 2016 to 2019.

How much does the JCB 437 HT wheel loader weigh?

The JCB 437 HT wheel loader weighs 14.79 tons.

What are the transport dimensions of the JCB 437 HT wheel loader?

The JCB 437 HT has a transport length of 7.3 meters, a transport width of 2.6 meters, and a transport height of 3.36 meters.

What is the travel speed of the JCB 437 HT wheel loader?

The JCB 437 HT has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader is equipped with standard tyres sized 20.5R25 XHA2.

What are the maneuverability specifications of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader has an articulated-frame steering system and an outside turning radius of 6.021 meters.

What is the lifting force of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader has a lifting force of 147 kN.

What is the maximum discharge height of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader has a maximum discharge height of 2.79 meters.

What are the bucket capacity specifications of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader has a bucket capacity ranging from 2.3 mu00b3 to a maximum of 2.7 mu00b3, with a standard bucket capacity of 2.3 mu00b3.

How much is a JCB 437 HT Wheel loader (2016u20132019) worth?

The residual value of the JCB 437 HT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
