436e HT JCB 436e HT Specifications & Technical Data (2007—2013)

Model rating
0,00 / 10

The JCB 436e HT is a wheel loader manufactured by JCB from 2007 to 2013. It has a weight of 14.5 tons and a transport length of 6.…

The JCB 436e HT is a wheel loader manufactured by JCB from 2007 to 2013. It has a weight of 14.5 tons and a transport length of 6.926 meters. The bucket capacity is 2.3 cubic meters with a width of 2.27 meters. The maximum discharge height is 3.7 meters. It has a travel speed of 37.9 km/h and a transport width of 2.597 meters. The transport height is 3.335 meters. The lifting force is 147 kN and the turning radius outside is 5.86 meters. The bucket capacity ranges from a minimum of 2.6 cubic meters to a maximum of 2.6 cubic meters. It is equipped with air conditioning.

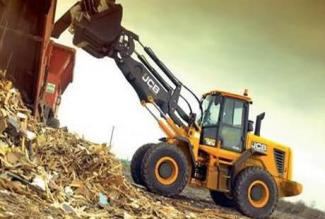

Wheel Loaders JCB 436e HT
Wheel Loaders JCB 436e HT
Wheel Loaders JCB 436e HT
Wheel Loaders JCB 436e HT

Visit JCB live at

Technical specs - 436e HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Standard tyres
20.5 R25
Bucket width
2.27 m
Bucket capacity
2.3 m³
Bucket capacity min.
2.6 m³
Bucket capacity max.
2.6 m³
Steering mode
KL
Transport length
6.926 m
Transport width
2.597 m
Transport height
3.335 m
Travel speed
37.9 km/h
Max. discharge height
3.7 m
Turning radius outside
5.86 m
Lifting force
147 kN
Engine manuf.
Cummins
Engine type
QSC6.7
Engine power
133 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm

More technical details, like: model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 436e HT FAQ

When was the JCB 436e HT manufactured?

The JCB 436e HT was manufactured from 2007 to 2013.

How much does the JCB 436e HT wheel loader weigh?

The JCB 436e HT wheel loader weighs 14.5 tons.

What are the transport dimensions of the JCB 436e HT wheel loader?

The JCB 436e HT has a transport length of 6.93 meters, a transport width of 2.6 meters, and a transport height of 3.34 meters.

What is the travel speed of the JCB 436e HT wheel loader?

The JCB 436e HT has a travel speed of 37.9 km/h.

What is the standard tyre size of the JCB 436e HT wheel loader?

The JCB 436e HT wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the JCB 436e HT wheel loader?

The JCB 436e HT has an outside turning radius of 5.86 meters and features articulated-frame steering.

What is the lifting force of the JCB 436e HT wheel loader?

The JCB 436e HT wheel loader has a lifting force of 147 kN.

What is the maximum discharge height of the JCB 436e HT?

The JCB 436e HT has a maximum discharge height of 3.7 meters.

What are the bucket specifications of the JCB 436e HT wheel loader?

The JCB 436e HT wheel loader has a bucket capacity of 2.3 cubic meters, a minimum bucket capacity of 2.6 cubic meters, a maximum bucket capacity of 2.6 cubic meters, and a bucket width of 2.27 meters.
