435S JCB 435S Specifications & Technical Data (2016—2020)

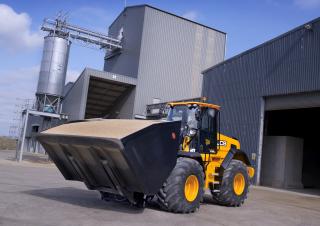

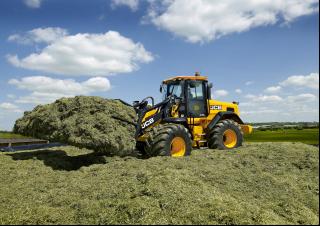

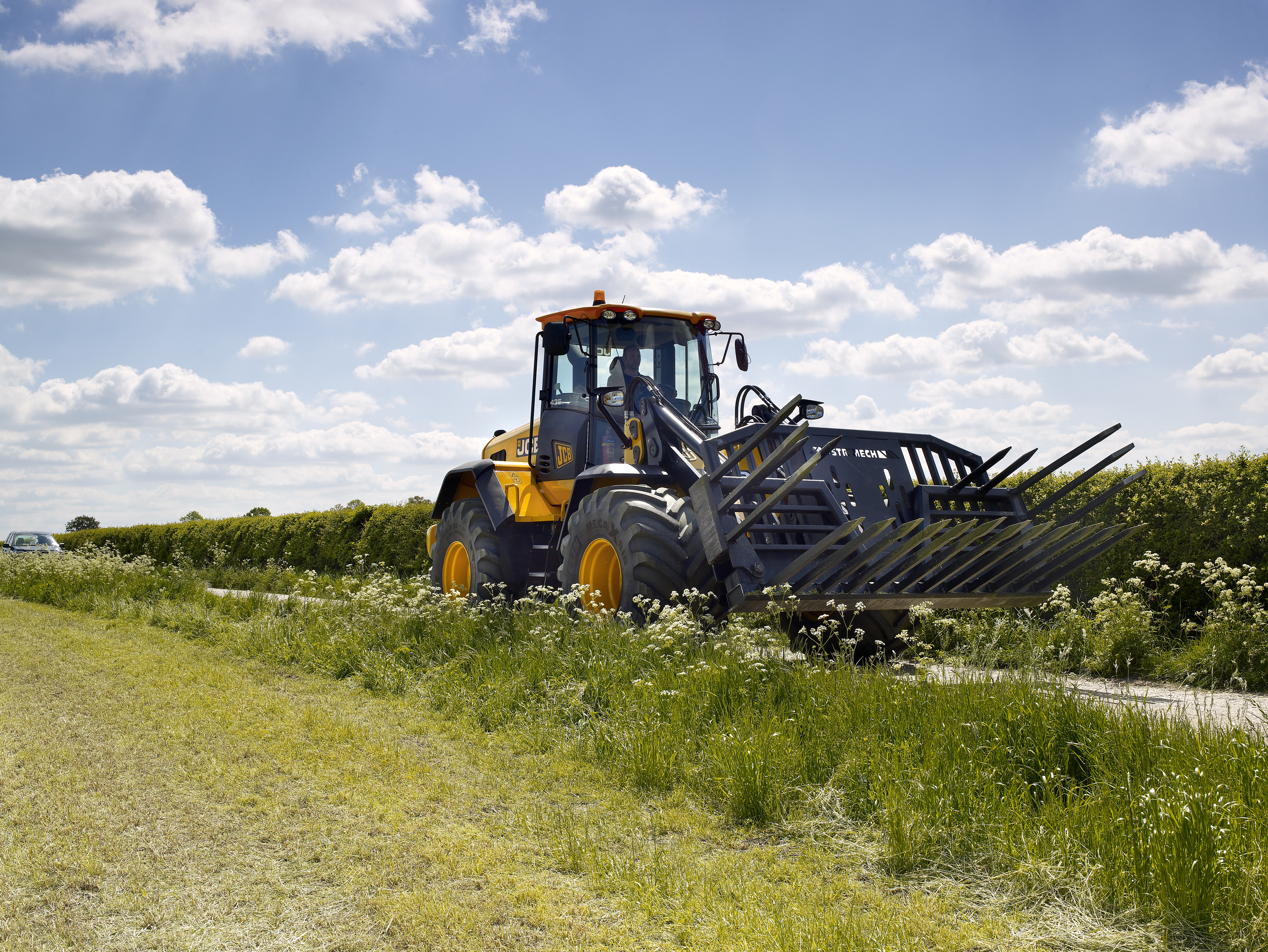

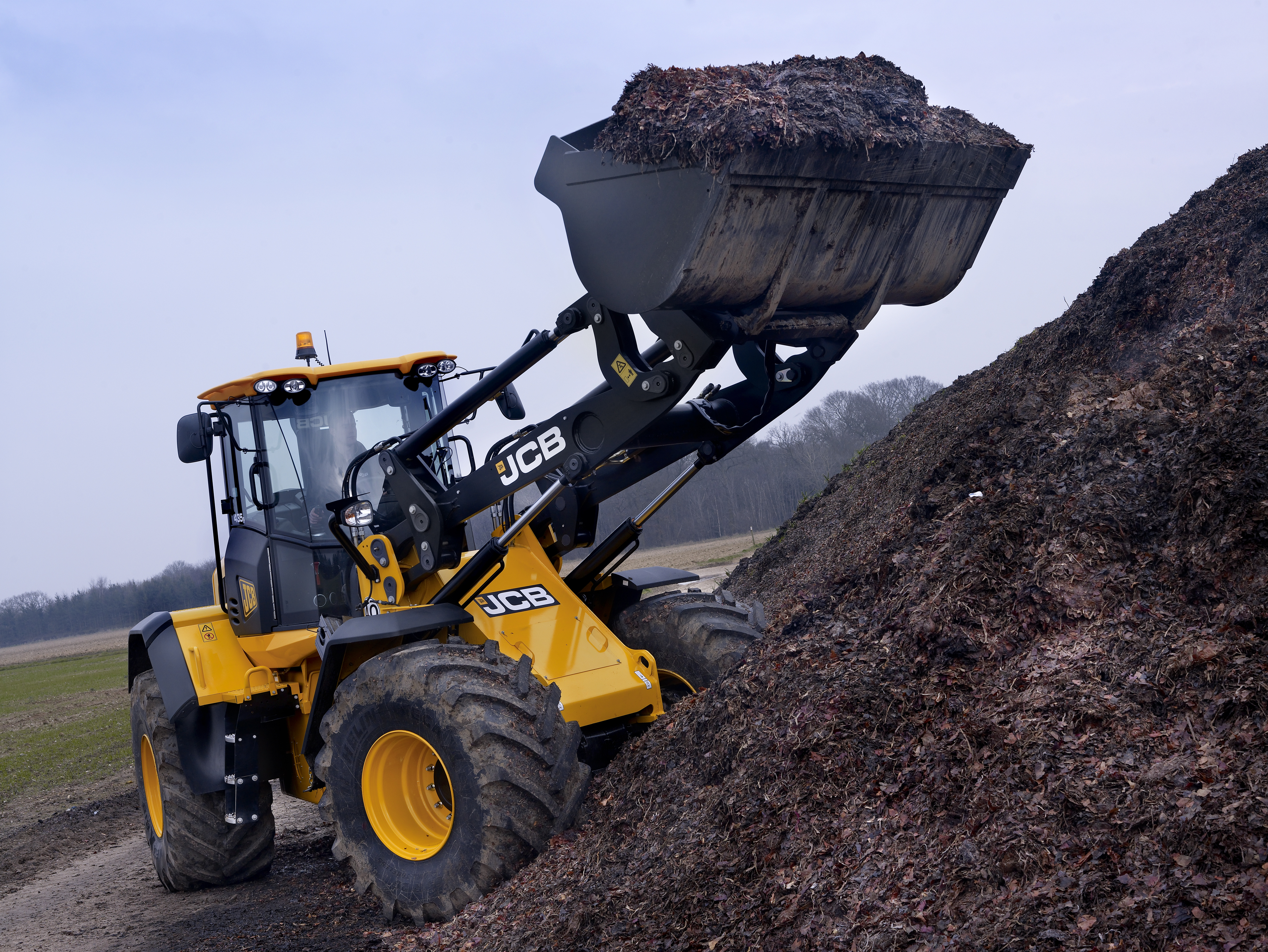

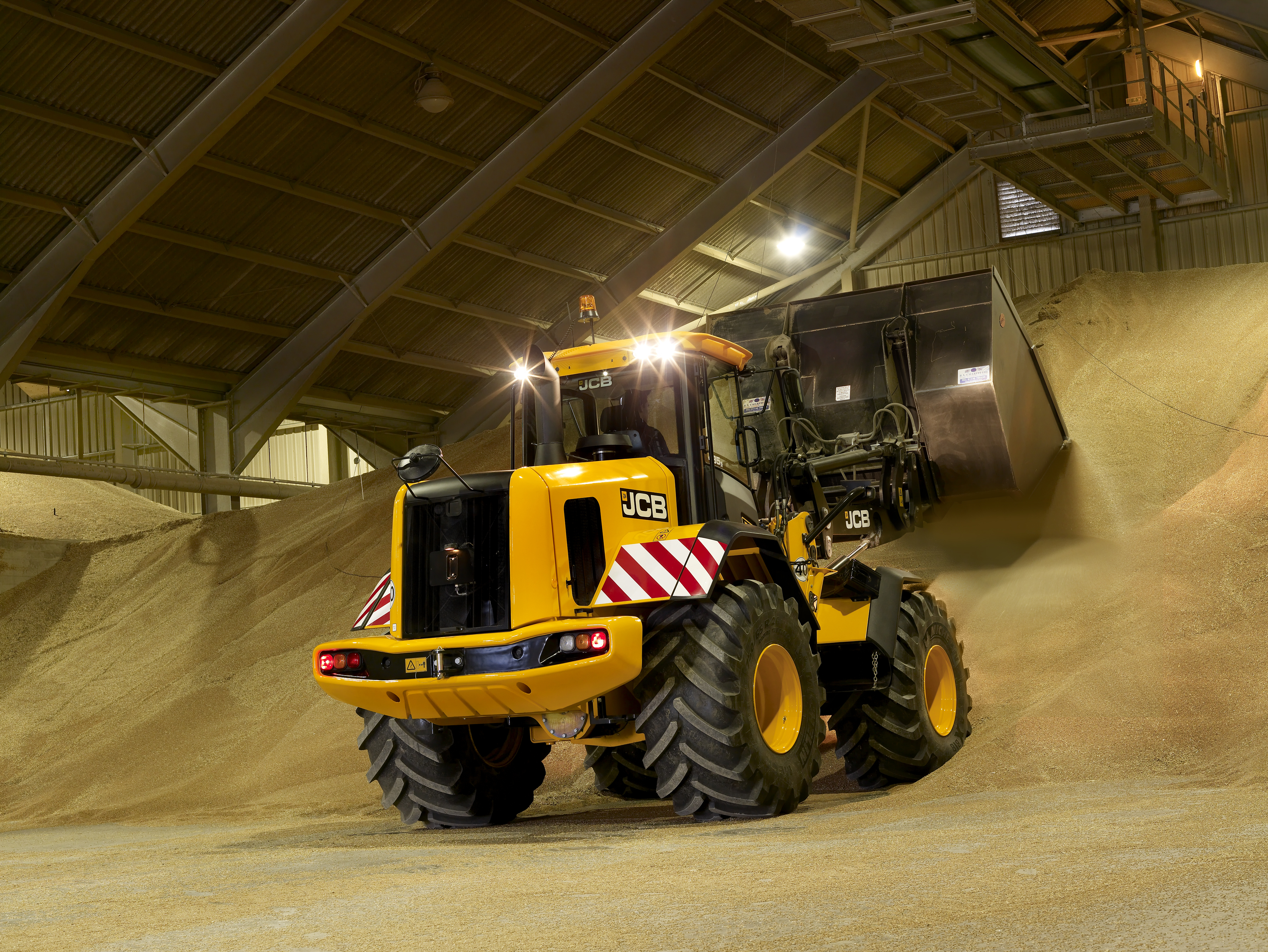

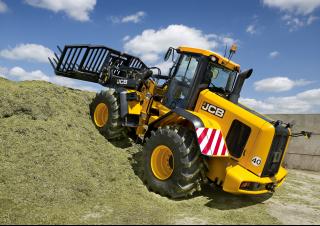

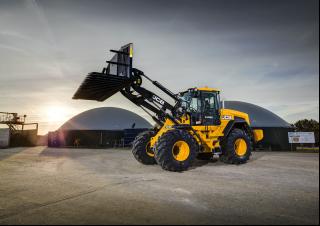

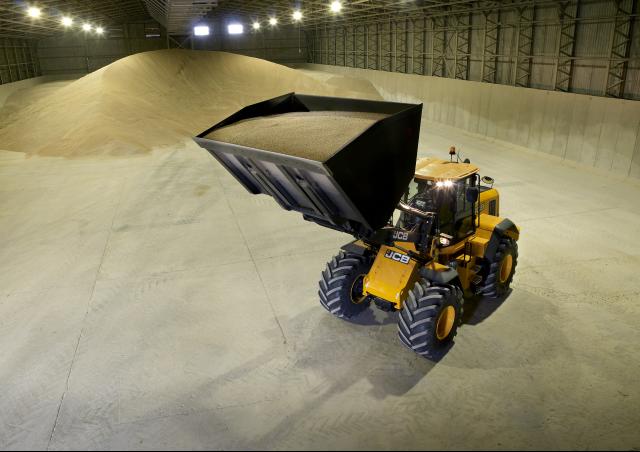

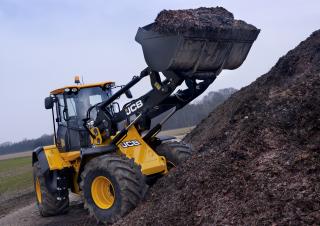

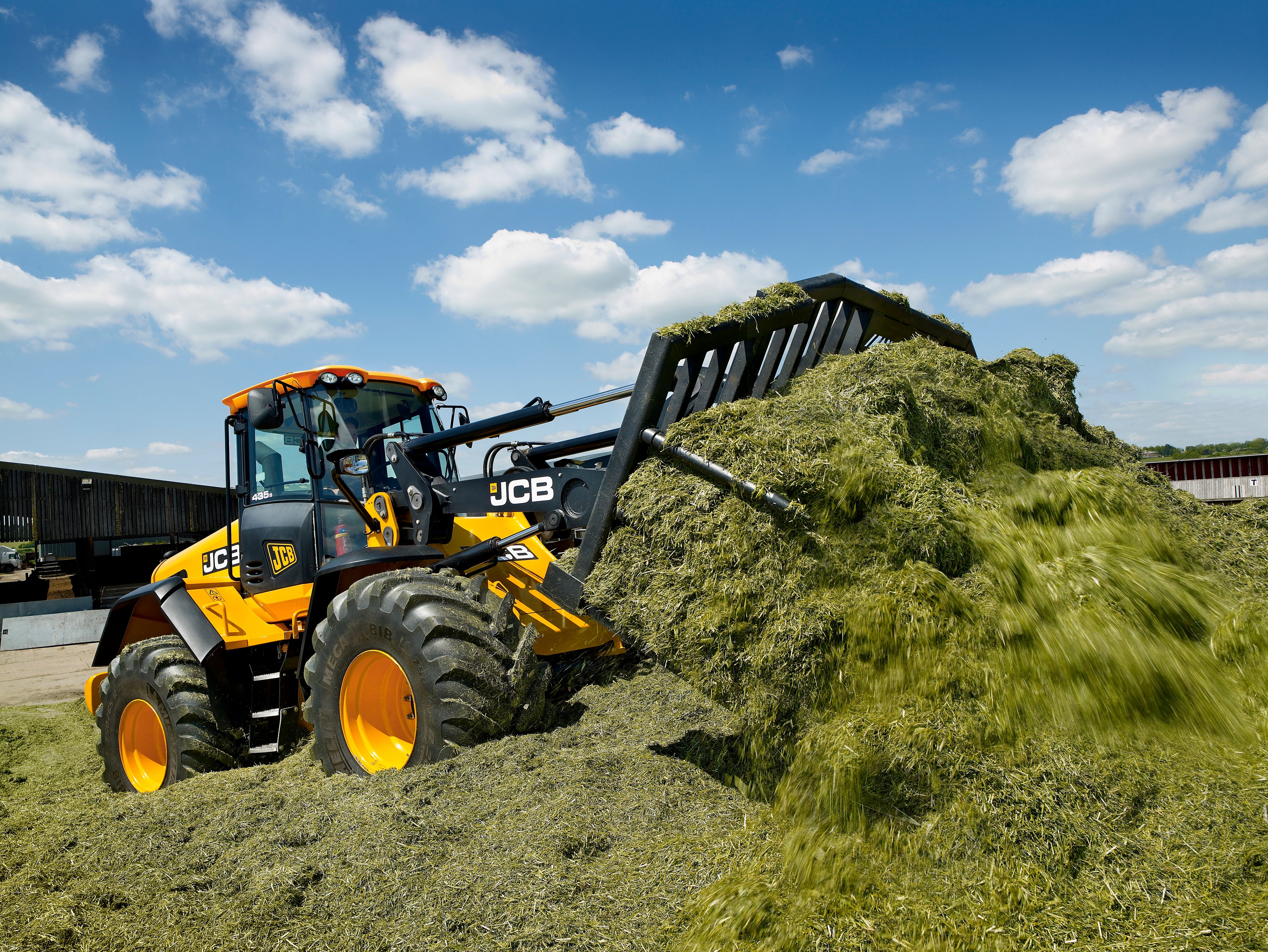

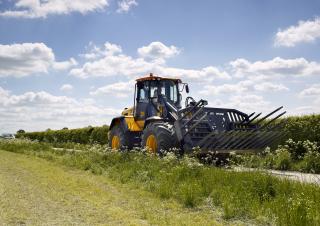

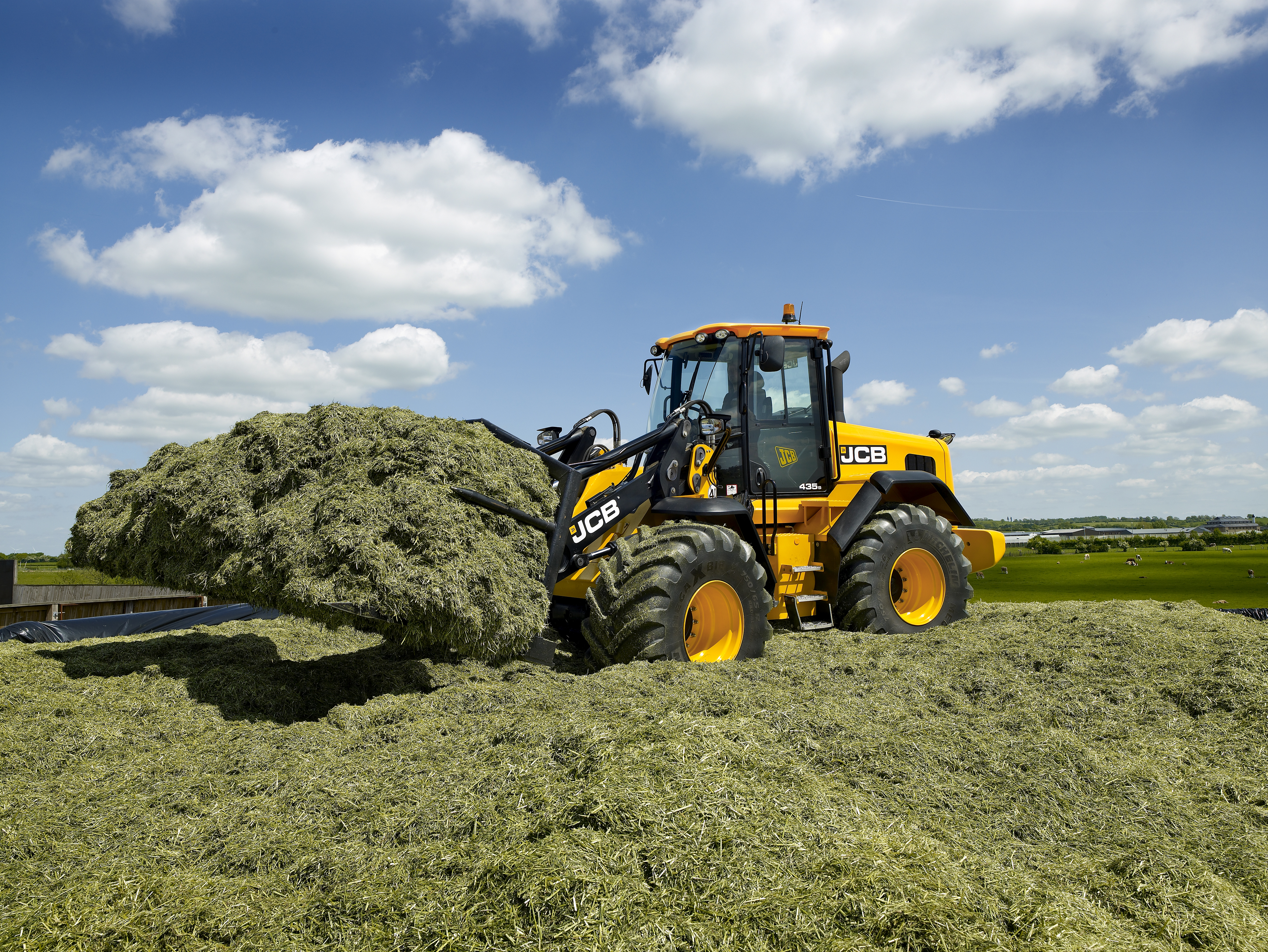

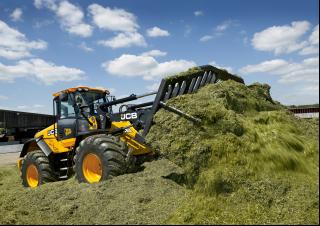

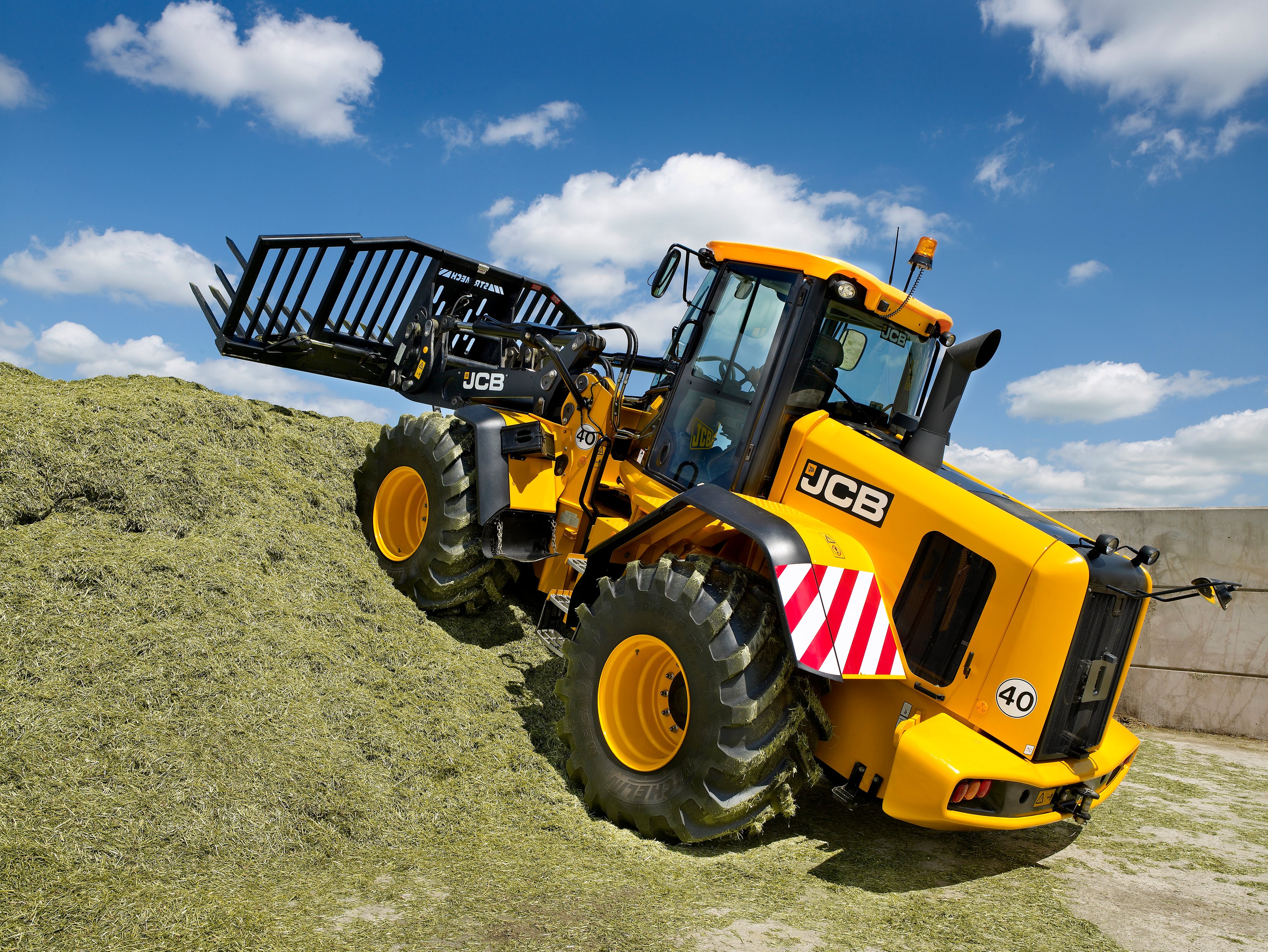

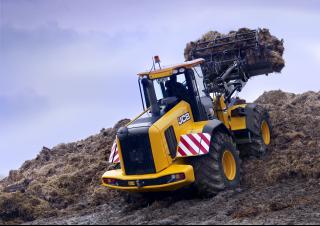

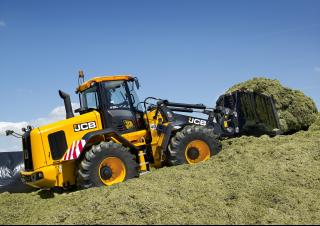

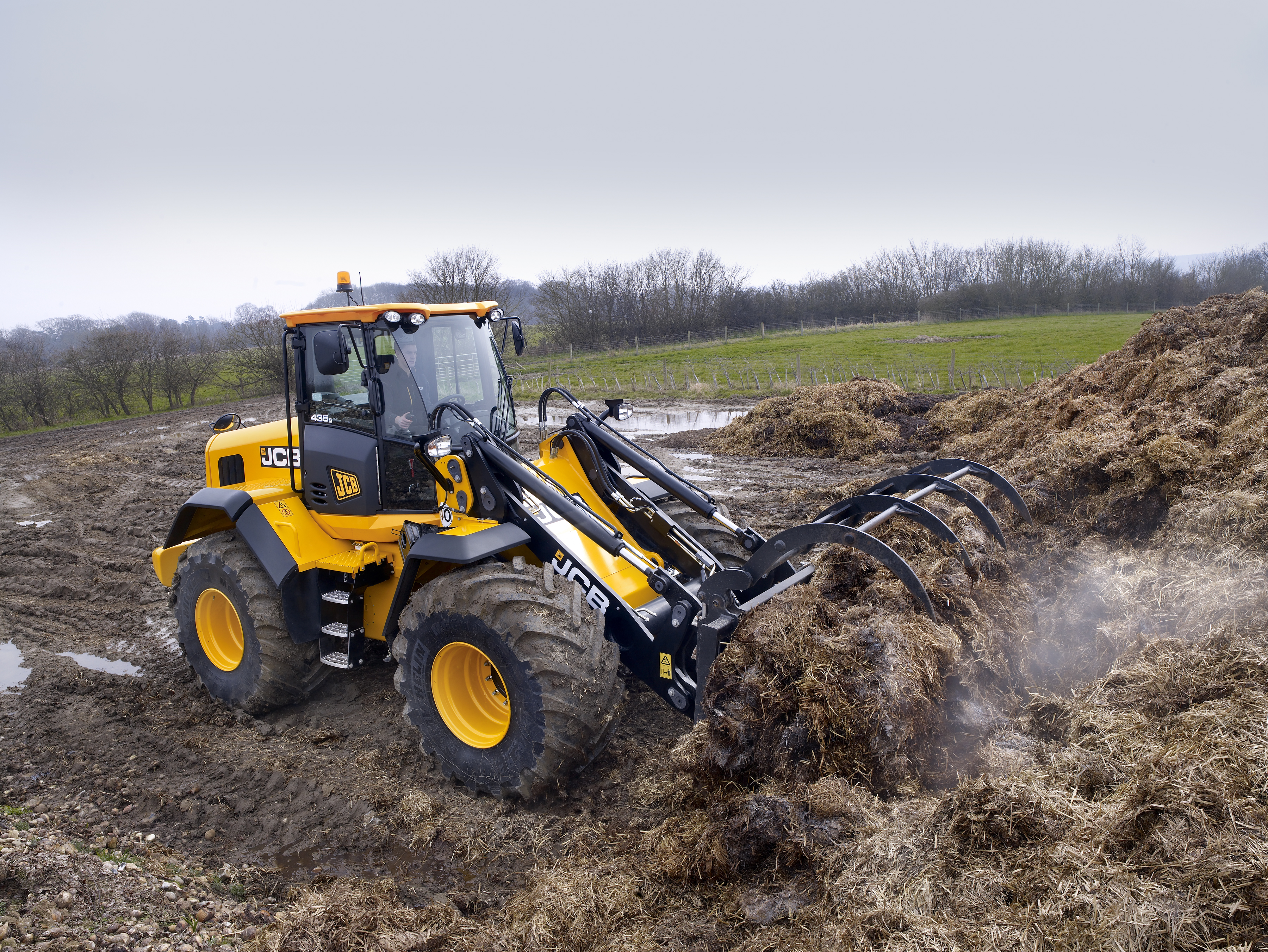

The JCB 435S is a wheel loader manufactured by JCB from 2016 to 2020. It has a weight of 14.05 tons and a transport length of 7.2 …

The JCB 435S is a wheel loader manufactured by JCB from 2016 to 2020. It has a weight of 14.05 tons and a transport length of 7.2 meters. The bucket capacity is 1.9 cubic meters, and it has a maximum discharge height of 2.94 meters. The travel speed of the machine is 48 km/h, and the transport width is 2.96 meters. The transport height is 3.42 meters. It has a lifting force of 138 kN and a turning radius outside of 5.9 meters. The bucket capacity is a minimum of 1.9 cubic meters. The special equipment includes air conditioning and a quick hitch hydraulic system.

Visit JCB live at

435S

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 435S JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.05 t

Standard tyres: 750/65 R26

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Steering mode: KL

Transport length: 7.2 m

Transport width: 2.96 m

Transport height: 3.42 m

Travel speed: 48 km/h

Max. discharge height: 2.94 m

Turning radius outside: 5.9 m

Lifting force: 138 kN

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 172 kW

Displacement: 6.7 l

Revolutions at max torque: 1500 rpm

Max. torque: 945 Nm

No. of cylinders: 6

Emission level: IV

More technical details, like: bucket width, bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

435S JCB Specification for Europe (EN)

JCB 435S FAQ

When was the JCB 435S manufactured?

The JCB 435S was manufactured from 2016 to 2020.

How much does the JCB 435S wheel loader weigh?

The JCB 435S wheel loader weighs 14.05 tons.

What are the transport dimensions of the JCB 435S wheel loader?

The JCB 435S has a transport length of 7.2 meters, a transport width of 2.96 meters, and a transport height of 3.42 meters.

What is the travel speed of the JCB 435S wheel loader?

The JCB 435S wheel loader has a travel speed of 48 km/h.

What is the standard tyre size of the JCB 435S?

The JCB 435S wheel loader is equipped with standard tyres sized 750/65 R26.

What are the maneuverability specifications of the JCB 435S wheel loader?

The JCB 435S wheel loader has an articulated-frame steering system and an outside turning radius of 5.9 meters.

What is the power rating of the JCB 435S wheel loader?

Power rating data for the JCB 435S wheel loader is not provided.

What is the maximum discharge height of the JCB 435S?

The JCB 435S has a maximum discharge height of 2.94 meters.

What is the bucket capacity of the JCB 435S wheel loader?

The JCB 435S wheel loader has a bucket capacity of 1.9 cubic meters.

How much is a JCB 435S Wheel loader (2016u20132020) worth?

The residual value of the JCB 435S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
