427 ZX JCB 427 ZX Specifications & Technical Data (2013—2017)

The JCB 427 ZX is a wheel loader manufactured by JCB from 2013 to 2017. It has a weight of 13.05 tons and a transport length of 6.…

The JCB 427 ZX is a wheel loader manufactured by JCB from 2013 to 2017. It has a weight of 13.05 tons and a transport length of 6.83 meters. The bucket capacity is 2.4 cubic meters with a width of 2.7 meters. The maximum discharge height is 2.88 meters. It has a travel speed of 40 km/h and a transport width of 2.48 meters. The transport height is 3.34 meters. The lifting force is 129 kN and the turning radius outside is 5.93 meters. The bucket capacity minimum is 2.4 cubic meters. It is equipped with air conditioning.

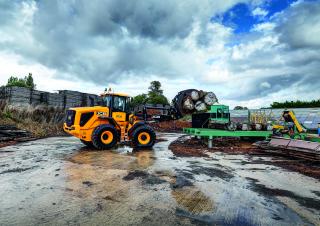

Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX
Wheel Loaders JCB 427 ZX

Visit JCB live at

Technical specs - 427 ZX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.05 t
Standard tyres
20.5 R25 XHA
Bucket width
2.7 m
Bucket capacity
2.4 m³
Bucket capacity min.
2.4 m³
Steering mode
KL
Transport length
6.83 m
Transport width
2.48 m
Transport height
3.34 m
Travel speed
40 km/h
Max. discharge height
2.88 m
Turning radius outside
5.93 m
Lifting force
129 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
118 kW
Displacement
6.7 l
Revolutions at max torque
1500 rpm
Emission level
Tier 4 i

More technical details, like: bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 427 ZX FAQ

When was the JCB 427 ZX manufactured?

The JCB 427 ZX was manufactured from 2013 to 2017.

How much does the JCB 427 ZX wheel loader weigh?

The JCB 427 ZX wheel loader weighs 13.05 tons.

What are the transport dimensions of the JCB 427 ZX wheel loader?

The JCB 427 ZX has a transport length of 6.83 meters, a transport width of 2.48 meters, and a transport height of 3.34 meters.

What is the travel speed of the JCB 427 ZX wheel loader?

The JCB 427 ZX has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 427 ZX wheel loader?

The JCB 427 ZX wheel loader is equipped with standard tyres sized 20.5 R25 XHA.

What are the maneuverability specifications of the JCB 427 ZX wheel loader?

The JCB 427 ZX wheel loader has an outside turning radius of 5.93 meters and features articulated-frame steering.

What is the lifting force of the JCB 427 ZX wheel loader?

The JCB 427 ZX wheel loader has a lifting force of 129 kN.

What is the maximum discharge height of the JCB 427 ZX?

The JCB 427 ZX has a maximum discharge height of 2.88 meters.

What are the bucket specifications of the JCB 427 ZX wheel loader?

The JCB 427 ZX wheel loader has a bucket capacity of 2.4 cubic meters, a minimum bucket capacity of 2.4 cubic meters, and a bucket width of 2.7 meters.

How much is a JCB 427 ZX Wheel loader (2013u20132017) worth?

The residual value of the JCB 427 ZX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
