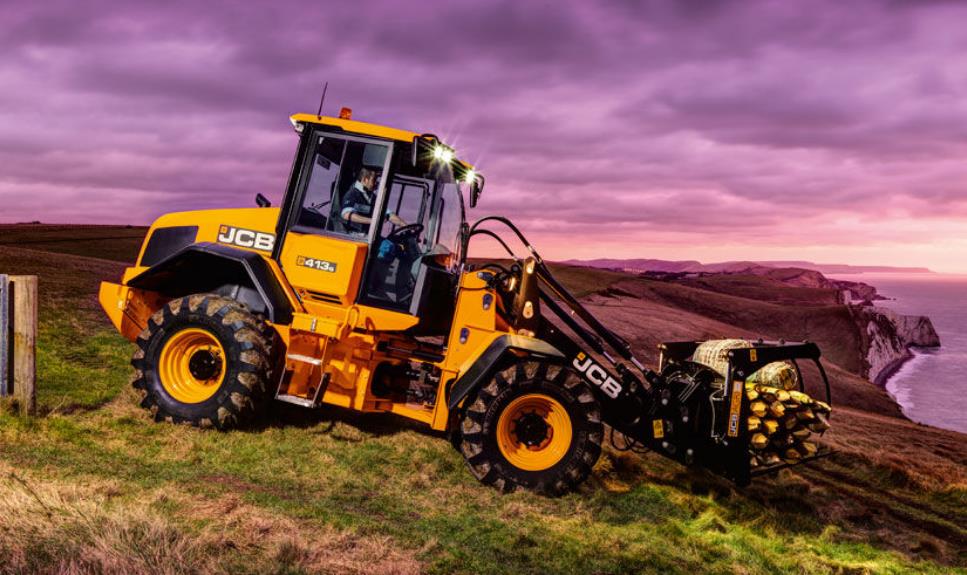

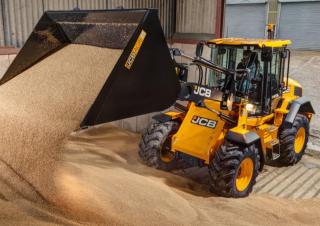

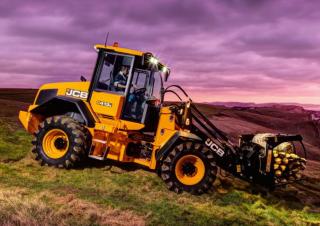

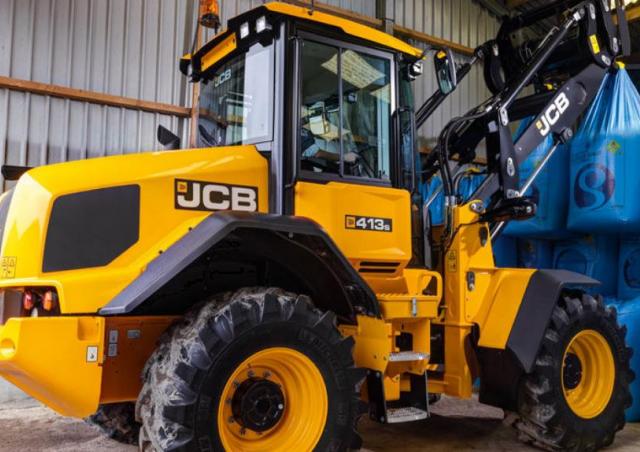

413 S JCB 413 S Specifications & Technical Data (2016—2020)

Designed to work hard.

Finite element analysis, as well as extensive endurance and rig testing ensure superior structural strength and durability. Cold cell testing guarantees starting performance down to -20°C. Precision machining provides high tolerances and accurate location of pins and bushes.

Productivity and cost benefits

By providing information like idle time monitoring and machine fuel consumption, JCB Livelink helps reduce your fuel usage, saving money and improving productivity. Machine location information can help improve efficiency and perhaps even reduce insurance costs.

Security benefits

Livelink’s real-time geofencing alerts tell you when machines move out of predetermined zones, and real-time curfew alerts inform you of unauthorised usage. Further benefits include real-time location information.

Maintenance benefits

Manage machine maintenance easily – accurate hours monitoring and service alerts improve maintenance planning, while real-time location data helps you manage your fleet. Critical machine alerts and maintenance history records are also available.

Rebuild and Refurbishment Programme

If your business isn’t in a position to buy a brand new machine, then JCB’s Rebuild and Refurbishment programme can help you to extend the service life of your current vehicle cost-effectively.

Component monitoring

JCB machines benefit from a sophisticated component monitoring programme that provides preventative maintenance and oil sampling to keep everything working at its optimum level.

Engine productivity

The EcoMAX 4.8 litre engine achieves maximum engine power (108kW) and peak torque (560Nm) at low revs for excellent response. A variable geometry turbocharger provides increased performance at low engine speed for improved cycle times and tractive effort.

Drivetrain productivity

With a choice of axle options you can tailor performance to any application. Open differentials are ideal for hard standing ground conditions. Limited slip differential axles increase tractive effort and are perfect for soft muddy ground conditions.

Powering it all

No DPF means unnecessary additional fuel piping is eliminated as is the potentially dangerous temperatures involved in regeneration. The fuel that would have been needed to restore your DPF can be used instead for actual productive work. EcoMAX produces high levels of power and torque at engine speeds as low as 1500-1600 rpm for efficient matching of transmission and hydraulics. High back-off brakes reduce viscous drag during roading and rehandling, which boosts fuel efficiency.

An efficient engine

A viscous coupled engine fan automatically adjusts its speed depending on ambient temperature, optimising cooling, saving fuel and lowering noise. Using specialist attachments is easy with an in-cab adjustable proportional auxiliary flow rate. Our 6-speed transmission gives you a range of gears to suit a wide range of applications. The operator can choose from manual or automatic gear shifting at the press of a button. Unloaded spool valves in the valve block mean that arms lower under gravitational, not hydraulic force, reducing fuel consumption. JCB’s innovative variable displacement pump feeds a load-sensing valve block which only consumes power on demand, providing precise, efficient loader control.

Loading productivity.

JCB’s optional quickhitch makes attachment changing quick and efficient. The quickhitch is designed to be compatible with aftermarket attachments too. Powerful hydraulics result in fast cycle times and increased productivity; that’s why we’ve fitted a single variable displacement piston pump hydraulics which can deliver up to 156 l/min for superb multi-functioning. So you can perform parallel lifting and use plenty of attachments, the 413S is fitted with a high torque (HT) loader arm. You can also opt for a high lift (HL) arm for high-up applications like spreader and feeder loading.

Protecting Ancillaries

A solid cast rear counterweight protects the rear of your machine – including the rear lights and cooling pack – from damage. For additional protection, there are impact-resistant fender edges and trims fitted.

Towing Productivity

The hydraulic tow hitch on the 413S not only increases machine versatility, but it hydraulically folds away from the operator’s seat, preventing impact damage and grounding when working on uneven ground or gradients.

Safety Features

Our optional rear-view camera displays an unobstructed rearward view on the in-cab colour monitor. Superb visibility in dark conditions is guaranteed with JCB’s optional LED worklights. You’ll find the rear-view mirrors mounted in front of the A-pillars for improved all-round visibility. Interior mirrors, heated exterior mirrors and bonnet mirrors combine to offer excellent views to every corner of your machine.

A quality process.

We know that a wheel loader is a key part of agriculture. That’s why the JCB 413S is built on a foundation of quality and reliability. The processes we’ve used to design and manufacture them will safeguard your working process, hour after hour, day after day.

Routine maintenance.

Gain access to the engine bay and cooling pack areas easily with the compact single piece bonnet. You can check washer fluid level, engine oil and coolant from inside the cab, with all other routine checks and grease points located at ground level. This makes life both easier and safer. Accessing the diesel and DEF (Diesel Exhaust Fluid) tanks is similarly straightforward. Both filler points are separated so as to avoid accidental cross-contamination when refilling. Most Tier 4 Final/Stage IV engines use a costly Diesel Particulate Filter (DPF) that can cost a lot of money and time when it needs replacing. The EcoMAX engine is DPF-free, reducing your servicing and running costs. With the optional auto lubrication kit, your machine will take care of its own greasing requirements.
