BL200-1 Beml BL200-1 Specifications & Technical Data (2017—2026)

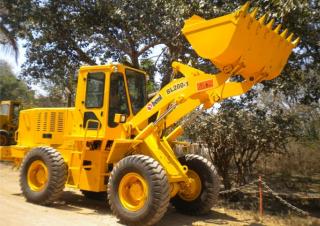

The Beml BL200-1 is a wheel loader manufactured since 2017. It has a weight of 10.5 tons and a transport length of 6.8 meters. The…

The Beml BL200-1 is a wheel loader manufactured since 2017. It has a weight of 10.5 tons and a transport length of 6.8 meters. The bucket capacity is 1.7 cubic meters, and the maximum discharge height is 2.8 meters. It has a travel speed of 37 km/h and a transport width of 2.375 meters. The transport height is 3.325 meters, and the lifting force is 97 kN. The turning radius outside is 5.62 meters, and the minimum bucket capacity is 1.7 cubic meters.

Wheel Loaders Beml BL200-1

Technical specs - BL200-1 Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.5 t
Standard tyres
14x25. 20PR. (L3)
Bucket capacity
1.7 m³
Bucket capacity min.
1.7 m³
Transport length
6.8 m
Transport width
2.375 m
Transport height
3.325 m
Travel speed
37 km/h
Max. discharge height
2.8 m
Turning radius outside
5.62 m
Lifting force
97 kN
Engine manuf.
Ashok Leyland
Engine type
H6ETIC3R-BSIII
Engine power
99 kW
No. of cylinders
6

More technical details, like: bucket width, bucket capacity max., steering mode, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Beml BL200-1 FAQ

When was the Beml BL200-1 manufactured?

The Beml BL200-1 was first produced in 2017.

How much does the Beml BL200-1 weigh?

The Beml BL200-1 weighs 10.5 tons.

What are the transport dimensions of the Beml BL200-1 wheel loader?

The Beml BL200-1 has a transport length of 6.8 meters, a transport width of 2.38 meters, and a transport height of 3.33 meters.

What is the travel speed of the Beml BL200-1 wheel loader?

The Beml BL200-1 has a travel speed of 37 km/h.

What are the undercarriage specifications of the Beml BL200-1 wheel loader?

The Beml BL200-1 wheel loader is equipped with standard tyres sized 14x25, 20PR, (L3).

What is the turning radius of the Beml BL200-1 wheel loader?

The Beml BL200-1 has an outside turning radius of 5.62 meters.

Is there any power rating information available for the Beml BL200-1 wheel loader?

No power rating information is provided for the Beml BL200-1 wheel loader in the available data.

What is the material handling capacity of the Beml BL200-1 in terms of discharge height?

The Beml BL200-1 has a maximum discharge height of 2.8 meters.

What is the bucket capacity of the Beml BL200-1 wheel loader?

The Beml BL200-1 wheel loader has a bucket capacity of 1.7 cubic meters.
