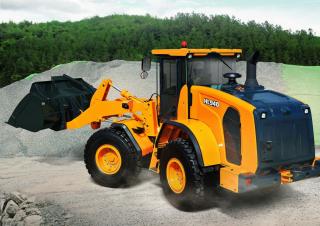

HL940 Hyundai HL940 Specifications & Technical Data (2016—2019)

The Hyundai HL940 wheel loader, manufactured from 2016 to 2019, is a construction machine with a weight of 13.1 tons. It has a tra…

The Hyundai HL940 wheel loader, manufactured from 2016 to 2019, is a construction machine with a weight of 13.1 tons. It has a transport length of 7.43 meters and a transport width of 2.6 meters. The bucket capacity ranges from 2 to 2.3 cubic meters, with a bucket width of 2.6 meters. The maximum discharge height is 3.82 meters. It has a travel speed of 40 km/h and a transport height of 3.3 meters. The turning radius outside is 10.745 meters. Special equipment includes air conditioning.

Wheel Loaders Hyundai HL940
Wheel Loaders Hyundai HL940
Wheel Loaders Hyundai HL940
Wheel Loaders Hyundai HL940

Visit Hyundai live at

Technical specs - HL940 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.1 t
Standard tyres
20.5 R 25
Bucket width
2.6 m
Bucket capacity
2.3 m³
Bucket capacity min.
2 m³
Bucket capacity max.
2.3 m³
Steering mode
KL
Transport length
7.43 m
Transport width
2.6 m
Transport height
3.3 m
Travel speed
40 km/h
Max. discharge height
3.82 m
Turning radius outside
10.745 m
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
118 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
Max. torque
860/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HL940 FAQ

When was the Hyundai HL940 manufactured?

The Hyundai HL940 was manufactured from 2016 to 2019.

How much does the Hyundai HL940 wheel loader weigh?

The Hyundai HL940 wheel loader weighs 13.1 tons.

What are the transport dimensions of the Hyundai HL940 wheel loader?

The Hyundai HL940 has a transport length of 7.43 meters, a transport width of 2.6 meters, and a transport height of 3.3 meters.

What is the travel speed of the Hyundai HL940 wheel loader?

The Hyundai HL940 has a travel speed of 40 km/h.

What are the standard tyre specifications of the Hyundai HL940 wheel loader?

The Hyundai HL940 wheel loader has standard tyres sized 20.5 R 25.

What are the maneuverability specifications of the Hyundai HL940 wheel loader?

The Hyundai HL940 wheel loader has an articulated-frame steering system and an outside turning radius of 10.745 meters.

What is the maximum discharge height of the Hyundai HL940?

The Hyundai HL940 has a maximum discharge height of 3.82 meters.

What are the specifications of the bucket on the Hyundai HL940 wheel loader?

The Hyundai HL940 wheel loader has a bucket capacity ranging from 2 to 2.3 cubic meters and a bucket width of 2.6 meters.

How much is a Hyundai HL940 Wheel loader (2016u20132019) worth?

The residual value of the Hyundai HL940 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
