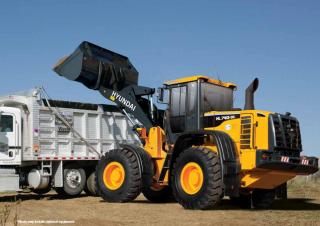

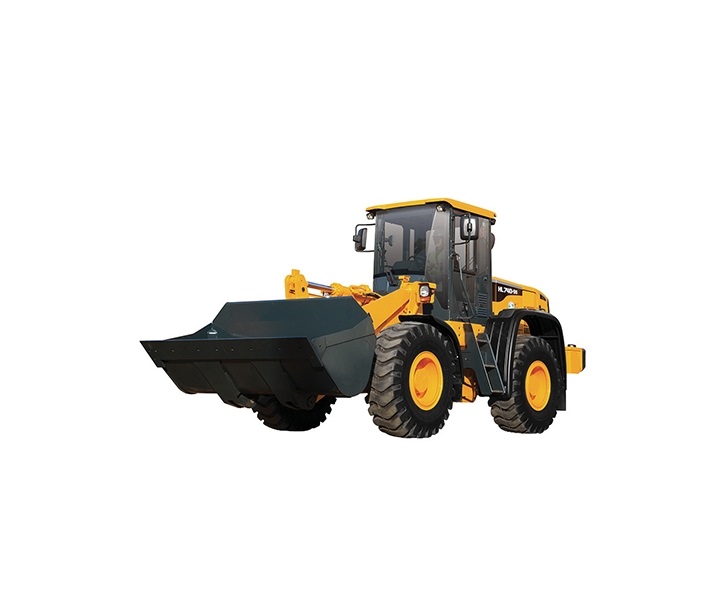

HL740-9S Hyundai HL740-9S Specifications & Technical Data (2019—2026)

Serviceability

Reversible, (Option) swing-out, cooling fan for easy service and improved cooler maintenance. Ground level access to critical service points, filters and sight gauges for easy maintenance.

Easy Access

The cooling fan is integrated into the rear door which swings open to over 45 degrees for easy access and regular maintenance. Conveniently located coolant and transmission oil site gauges make checking fluid levels fast and efficient. Ground-line access to fuel and oil filters, grease fittings, fuses, machine computer components, and wide open compartments makes service more convenient on the 9S series.

Remote-mounted Cooling Fan

The remote mounted, hydraulically powered cooling fan regulates fan speed according to working temperatures for coolant, intake air, transmission oil, and hydraulic oil. This new fan design contributes to reduced fuel consumption and machine noise. (Option: The fan is designed to auto reverse periodically or manually reverse to keep debris from accumulating on the coolers.)

Extended Life Components

The 9S series is designed for longer lubrication intervals and extended component life. Hydraulic oil can last up to 5,000 hours before changing. Also, a new center pivot roller bearing design, now double tapered, requires less maintenance as well. Long life and extended wear components save the operator time and money.

Reliable Main Components

Engine Technology Well proven, reliable, fuel efficient, low noise Cummins 6BTA5.9 engine. Robust Bosch in-line mechanical fuel injection pump. The most durable fuel system in the most harshest working environments. Fully Automatic Transmission 4 step(Manual / Light / Normal / Heavy) shift mode by working condition Protector transmission oil temperature(automatic warm-up system) Self diagnostic & Memory of malfunction history Minimum travel shift shock by applying proportional controlling modulation valve / Self adjusting Clutch gap Kick-down button Axle Self-adjusting & wet disc brake.

Powerful Cummins 6BTAS.9 Engine

Cummins 6BTAS.9 engine meets Tier1 emission standard. Cummins 6BTAS.9 engines have been proven durable and reliable in some of the most remote locations and harshest working environments in the world. A robust in-line fuel pump delivers more power at high injection pressure for cleaner combustion and lower emission. Holset HX35 turbocharger optimizes response across the torque curve.

Fully Automatic Transmission

Fully automatic transmission designed for maximum durability. Minimum power loss, improved travel speed and low noise. Improved clutch control and minimized shifting shock, when traveling, contribute to a smoother ride. Error messages and transmission fault history are recorded and accessible through the monitor.

Reduced Stress

Work is stressful enough. Your work environment should be stress-free. Hyundai's 9S series cabin offers lots of amenities, additional space, and a comfortable seat to minimize stress to the operator. A powerful climate control system provides the operator with optimum air temperature. An advanced audio system with AM/FM stereo, MP3 interface, Bluetooth hands-free, and USB input, plus Bluetooth hands-free controls, enhances the overall experience.

Wide and Convenient Cab

The newly designed cabin was conceived for more space, a wider field of view, and operator comfort. The front glass is rounded and 17% wider than the previous 7A series. Special attention was given to a clean, open, and convenient interior with plenty of visibility on the machine surroundings and the job at hand. This well-balanced combination of cab ergonomics puts the operator in the perfect position to work safely and securely. The 9S series cab's fully automatic climate control system features 11 air vents and increased cooling and heating capacity for optimum temperature control. The defroster vents located on the front and rear windows, along with a PTC (electric pre-heater, Option), make working in cold weather more hospitable.

Precision & Performance

Innovative hydraulic system technologies make the 9S series wheel loader fast, smooth, and easy to control. 9S series wheel loaders are designed for maximum performance to keep the operator working productively.
