ZW 150 Hitachi ZW 150 Specifications & Technical Data (2008—2014)

The Hitachi ZW 150 is a wheel loader manufactured from 2008 to 2014. It has a weight of 12.75 tons and a maximum discharge height …

The Hitachi ZW 150 is a wheel loader manufactured from 2008 to 2014. It has a weight of 12.75 tons and a maximum discharge height of 2.81 meters. The travel speed is 39 km/h, and the transport width is 2.55 meters. The transport height is 3.265 meters, and it has a lifting force of 106.9 kN. The turning radius outside is 5.83 meters. The bucket capacity ranges from 1.9 to 2.6 cubic meters. Special equipment includes air conditioning.

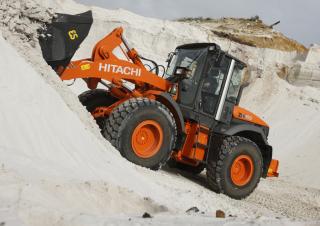

Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150
Wheel Loaders Hitachi ZW 150

Visit Hitachi live at

Technical specs - ZW 150 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.75 t
Standard tyres
20.5 R25 L3
Bucket capacity min.
1.9 m³
Bucket capacity max.
2.6 m³
Steering mode
KL
Transport width
2.55 m
Transport height
3.265 m
Travel speed
39 km/h
Max. discharge height
2.81 m
Turning radius outside
5.83 m
Lifting force
106.9 kN
Model series
ZW
Engine manuf.
Cummins
Engine type
QSB4.5
Engine power
107 kW
Displacement
4.46 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket width, bucket capacity, transport length, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZW 150 FAQ

When was the Hitachi ZW 150 manufactured?

The Hitachi ZW 150 was manufactured from 2008 to 2014.

How much does the Hitachi ZW 150 weigh?

The Hitachi ZW 150 weighs 12.75 tons.

What are the transport dimensions of the Hitachi ZW 150 wheel loader?

The Hitachi ZW 150 has a transport width of 2.55 meters and a transport height of 3.27 meters.

What is the travel speed of the Hitachi ZW 150 wheel loader?

The Hitachi ZW 150 wheel loader has a travel speed of 39 km/h.

What are the undercarriage specifications of the Hitachi ZW 150 wheel loader?

The Hitachi ZW 150 wheel loader is equipped with standard tyres sized 20.5 R25 L3.

What are the maneuverability specifications of the Hitachi ZW 150 wheel loader?

The Hitachi ZW 150 wheel loader has an outside turning radius of 5.83 meters and uses articulated-frame steering.

What is the lifting force of the Hitachi ZW 150 wheel loader?

The Hitachi ZW 150 wheel loader has a lifting force of 106.9 kN.

What is the maximum discharge height of the Hitachi ZW 150?

The Hitachi ZW 150 has a maximum discharge height of 2.81 meters.

What are the bucket capacity specifications of the Hitachi ZW 150 wheel loader?

The Hitachi ZW 150 wheel loader has a bucket capacity ranging from 1.9 to 2.6 cubic meters.
