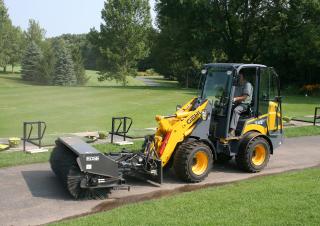

AL540 Gehl AL540 Specifications & Technical Data (2008—2021)

The Gehl AL540 is a wheel loader manufactured from 2008 to 2021. It has a weight of 3.1 tons and a transport length of 4.49 meters…

The Gehl AL540 is a wheel loader manufactured from 2008 to 2021. It has a weight of 3.1 tons and a transport length of 4.49 meters. The bucket capacity is 0.51 cubic meters, with a bucket width of 1.5 meters. The maximum discharge height is 2.21 meters, and it has a travel speed of 20 km/h. The transport width is 1.4 meters, and the transport height is 2.29 meters. The turning radius outside is 1.39 meters. Special equipment includes a quick hitch mechanism.

AL540

Years of manufacture: 2008—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AL540 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.1 t

Standard tyres: 33x15.5-16.5

Bucket width: 1.5 m

Bucket capacity: 0.51 m³

Bucket capacity min.: 0.51 m³

Steering mode: KL

Transport length: 4.49 m

Transport width: 1.4 m

Transport height: 2.29 m

Travel speed: 20 km/h

Max. discharge height: 2.21 m

Turning radius outside: 1.39 m

Model series: AL

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 34.8 kW

Displacement: 2.19 l

Revolutions at max torque: 2700 rpm

Max. torque: 137.4/1680 Nm

No. of cylinders: 4

Emission level: III A

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Gehl AL540 FAQ

When was the Gehl AL540 manufactured?

The Gehl AL540 was manufactured from 2008 to 2021.

How much does the Gehl AL540 wheel loader weigh?

The Gehl AL540 wheel loader weighs 3.1 tons.

What are the transport dimensions of the Gehl AL540 wheel loader?

The Gehl AL540 has a transport length of 4.49 meters, a transport width of 1.4 meters, and a transport height of 2.29 meters.

What is the travel speed of the Gehl AL540 wheel loader?

The Gehl AL540 wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Gehl AL540 wheel loader?

The Gehl AL540 wheel loader has standard tyres sized 33x15.5-16.5.

What are the maneuverability specifications of the Gehl AL540 wheel loader?

The Gehl AL540 wheel loader has an articulated-frame steering system and an outside turning radius of 1.39 meters.

What is the maximum discharge height of the material handling system on the Gehl AL540?

The Gehl AL540 has a maximum discharge height of 2.21 meters.

What are the bucket specifications of the Gehl AL540 wheel loader?

The Gehl AL540 wheel loader has a bucket capacity of 0.51 cubic meters, a minimum bucket capacity of 0.51 cubic meters, and a bucket width of 1.5 meters.
