DL250A Doosan DL250A Specifications & Technical Data (2019—2023)

The Doosan DL250A is a wheel loader manufactured since 2019. It has a weight of 14.2 tons and a transport length of 7.7 meters. Th…

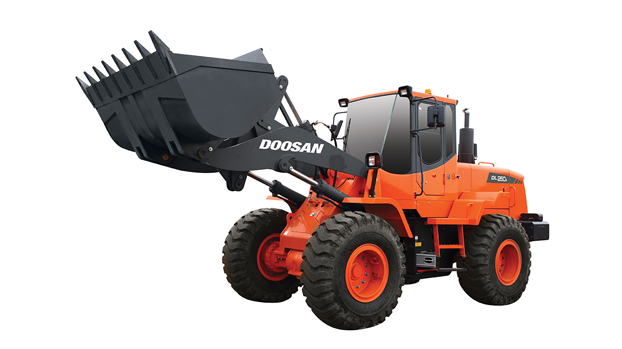

The Doosan DL250A is a wheel loader manufactured since 2019. It has a weight of 14.2 tons and a transport length of 7.7 meters. The bucket capacity is 2.5 cubic meters, with a width of 2.74 meters. The maximum discharge height is 2.8 meters. It has a travel speed of 36.5 km/h and a transport width of 2.74 meters. The transport height is 3.32 meters. The lifting force is 120 kN, and the turning radius outside is 6.1 meters. The bucket capacity is a minimum of 2.5 cubic meters. It is equipped with air conditioning.

Wheel Loaders Doosan DL250A

Technical specs - DL250A Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.2 t
Standard tyres
20.5-25-16PR (L3)
Bucket width
2.74 m
Bucket capacity
2.5 m³
Bucket capacity min.
2.5 m³
Transport length
7.7 m
Transport width
2.74 m
Transport height
3.32 m
Travel speed
36.5 km/h
Max. discharge height
2.8 m
Turning radius outside
6.1 m
Lifting force
120 kN
Model series
DL
Engine manuf.
Doosan
Engine type
D1146T
Engine power
127 kW
Displacement
8 l
Revolutions at max torque
1400 rpm
Max. torque
696 Nm
No. of cylinders
6
Cylinder bore x stroke
111 x 139 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DL250A FAQ

When was the Doosan DL250A manufactured?

The Doosan DL250A was manufactured from 2019 to 2023.

How much does the Doosan DL250A wheel loader weigh?

The Doosan DL250A wheel loader weighs 14.2 tons.

What are the transport dimensions of the Doosan DL250A wheel loader?

The Doosan DL250A has a transport length of 7.7 meters, a transport width of 2.74 meters, and a transport height of 3.32 meters.

What is the travel speed of the Doosan DL250A wheel loader?

The Doosan DL250A has a travel speed of 36.5 km/h.

What are the undercarriage specifications of the Doosan DL250A wheel loader?

The Doosan DL250A wheel loader is equipped with standard tyres sized 20.5-25-16PR (L3).

What is the outside turning radius of the Doosan DL250A wheel loader?

The Doosan DL250A has an outside turning radius of 6.1 meters.

What is the lifting force of the Doosan DL250A wheel loader, given that no power rating data is available?

The Doosan DL250A wheel loader has a lifting force of 120 kN. No power rating data is provided for this model.

What is the maximum discharge height of the Doosan DL250A wheel loader?

The Doosan DL250A wheel loader has a maximum discharge height of 2.8 meters.

What are the bucket specifications of the Doosan DL250A wheel loader?

The Doosan DL250A wheel loader has a bucket capacity of 2.5 cubic meters, a minimum bucket capacity of 2.5 cubic meters, and a bucket width of 2.74 meters.

How much is a Doosan DL250A Wheel loader (2019u20132023) worth?

The residual value of the Doosan DL250A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
