DL 250 Doosan DL 250 Specifications & Technical Data (2008—2013)

Model rating: 8,00 / 10

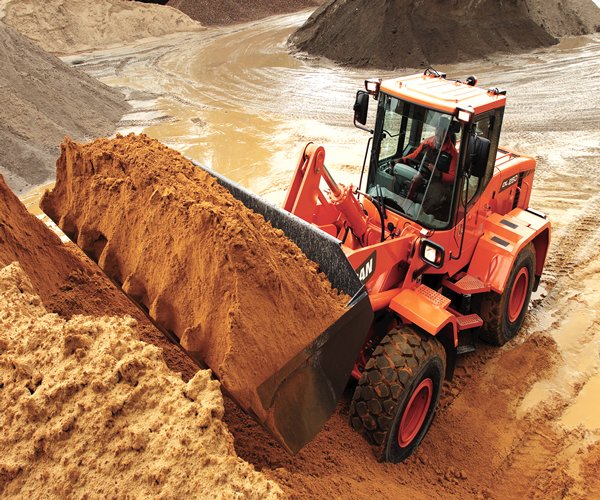

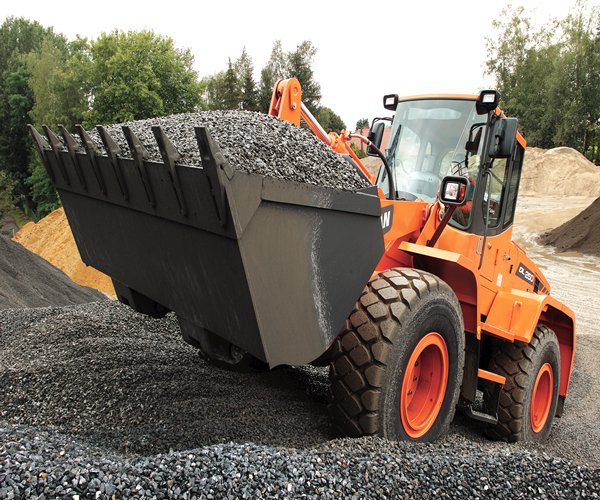

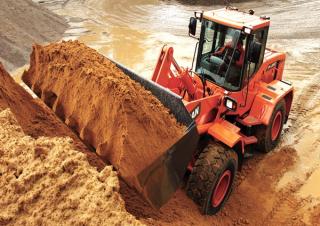

The Doosan DL 250 is a wheel loader manufactured by Doosan from 2008 to 2013. It has a weight of 14.5 tons and a transport length …

The Doosan DL 250 is a wheel loader manufactured by Doosan from 2008 to 2013. It has a weight of 14.5 tons and a transport length of 7.79 meters. The bucket width is 2.74 meters, and it has a maximum discharge height of 3.7 meters. The travel speed of this wheel loader is 37 km/h, and the transport width is 2.7 meters. It has a lifting force of 132 kN and a turning radius outside of 6.15 meters. The bucket capacity ranges from a minimum of 2.5 cubic meters. Additionally, it is equipped with air conditioning.

DL 250

Years of manufacture: 2008—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL 250 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.5 t

Standard tyres: 20.5 R25

Bucket width: 2.74 m

Bucket capacity min.: 2.5 m³

Steering mode: KL

Transport length: 7.79 m

Transport width: 2.7 m

Travel speed: 37 km/h

Max. discharge height: 3.7 m

Turning radius outside: 6.15 m

Lifting force: 132 kN

Model series: DL

Engine manuf.: Doosan

Engine type: DL 06

Engine power: 127 kW

Displacement: 5.9 l

Revolutions at max torque: 1400 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL 250 FAQ

When was the Doosan DL 250 manufactured?

The Doosan DL 250 was manufactured from 2008 to 2013.

How much does the Doosan DL 250 wheel loader weigh?

The Doosan DL 250 wheel loader weighs 14.5 tons.

What are the transport dimensions of the Doosan DL 250 wheel loader?

The Doosan DL 250 has a transport length of 7.79 meters and a transport width of 2.7 meters.

What is the travel speed of the Doosan DL 250 wheel loader?

The Doosan DL 250 wheel loader has a travel speed of 37 km/h.

What is the standard tyre size of the Doosan DL 250 wheel loader?

The Doosan DL 250 wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Doosan DL 250 wheel loader?

The Doosan DL 250 wheel loader has an outside turning radius of 6.15 meters and uses articulated-frame steering.

What is the lifting force rating of the Doosan DL 250 wheel loader?

The Doosan DL 250 wheel loader has a lifting force rating of 132 kN.

What is the maximum discharge height of the Doosan DL 250?

The Doosan DL 250 has a maximum discharge height of 3.7 meters.

What are the bucket specifications of the Doosan DL 250 wheel loader?

The Doosan DL 250 wheel loader has a bucket with a minimum capacity of 2.5 cubic meters and a width of 2.74 meters.
