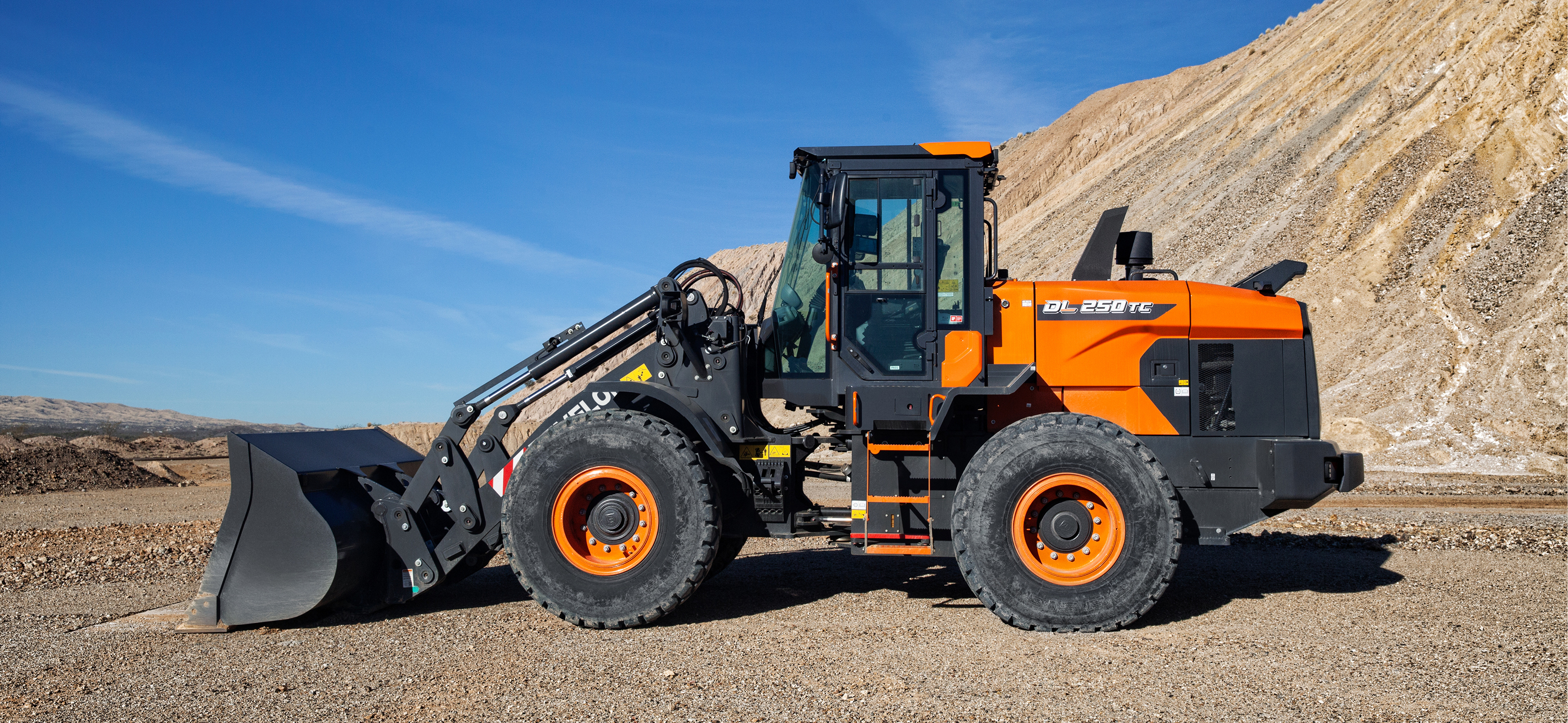

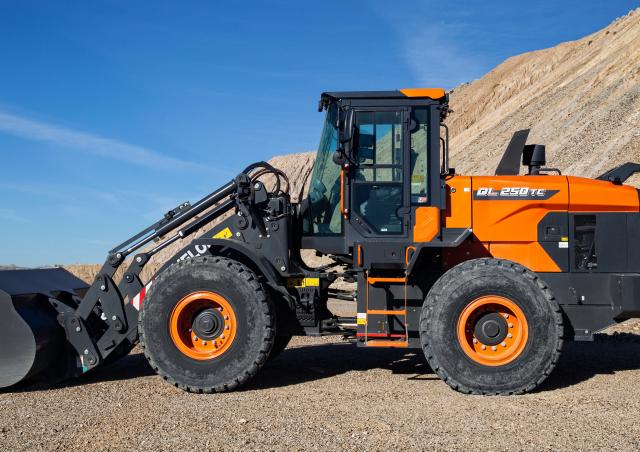

DL250TC-7 Develon DL250TC-7 Specifications & Technical Data (2024—2026)

Weight: 14.336t – Standard tyres: 20.5R25 L3 – Bucket width: 2.74m – Bucket capacity: 2.4m³ – Steering mode: KL – Transport length: 7.97m

Wheel Loaders Develon DL250TC-7

Visit Develon live at

Technical specs - DL250TC-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.336 t
Standard tyres
20.5R25 L3
Bucket width
2.74 m
Bucket capacity
2.4 m³
Steering mode
KL
Transport length
7.97 m
Transport width
2.74 m
Transport height
3.313 m
Travel speed
37.2 km/h
Max. discharge height
2.75 m
Turning radius outside
5.508 m
Model series
DL
Engine manuf.
Develon
Engine type
DL06P
Engine power
128 kW
Displacement
5.9 l
Revolutions at max torque
1400 rpm
Max. torque
804.1 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Tier 4

More technical details, like: bucket capacity min., bucket capacity max., lifting force, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)
