IT14G2 Caterpillar IT14G2 Specifications & Technical Data (2012—2026)

The Caterpillar IT14G2 is a wheel loader that has been manufactured since 2012. It has a weight of 8.45 tons and a transport lengt…

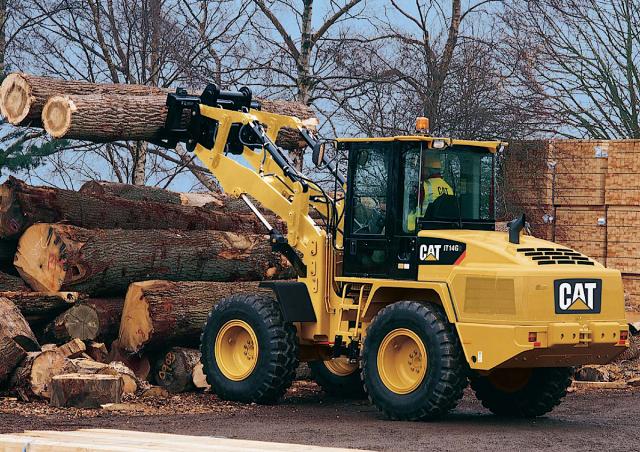

The Caterpillar IT14G2 is a wheel loader that has been manufactured since 2012. It has a weight of 8.45 tons and a transport length of 6.47 meters. The maximum discharge height is 2.89 meters and it can travel at a speed of 32 km/h. The transport width is 2.3 meters and the transport height is 3.1 meters. It has a lifting force of 77 kN and a maximum bucket capacity of 1.4 cubic meters, with a minimum bucket capacity of 1.2 cubic meters.

IT14G2

Years of manufacture: 2012—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - IT14G2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.45 t

Standard tyres: 17.5-R25

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 1.4 m³

Transport length: 6.47 m

Transport width: 2.3 m

Transport height: 3.1 m

Travel speed: 32 km/h

Max. discharge height: 2.89 m

Lifting force: 77 kN

Model series: IT

Engine manuf.: Caterpillar

Engine type: C4.4 Electronic

Engine power: 71 kW

Displacement: 4.4 l

Cylinder bore x stroke: 105x127 mm

Emission level: Tier3/ IIIA

More technical details, like: bucket width, bucket capacity, steering mode, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

IT14G2 Caterpillar Specification for North America (EN)

Caterpillar IT14G2 FAQ

When was the Caterpillar IT14G2 manufactured?

The Caterpillar IT14G2 was first produced in 2012.

How much does the Caterpillar IT14G2 weigh?

The Caterpillar IT14G2 weighs 8.45 tons.

What are the transport dimensions of the Caterpillar IT14G2 wheel loader?

The Caterpillar IT14G2 has a transport length of 6.47 meters, a transport width of 2.3 meters, and a transport height of 3.1 meters.

What is the travel speed of the Caterpillar IT14G2 wheel loader?

The Caterpillar IT14G2 wheel loader has a travel speed of 32 km/h.

What is the size of the standard tyres on the Caterpillar IT14G2 wheel loader?

The Caterpillar IT14G2 wheel loader is equipped with standard tyres sized 17.5-R25.

What is the power rating of the Caterpillar IT14G2 wheel loader?

The source data does not provide power rating information for the Caterpillar IT14G2 wheel loader.

What is the maximum discharge height of the Caterpillar IT14G2 wheel loader?

The Caterpillar IT14G2 wheel loader has a maximum discharge height of 2.89 meters.

What are the bucket capacity specifications of the Caterpillar IT14G2 wheel loader?

The Caterpillar IT14G2 wheel loader has a bucket capacity ranging from 1.2 to 1.4 cubic meters.
