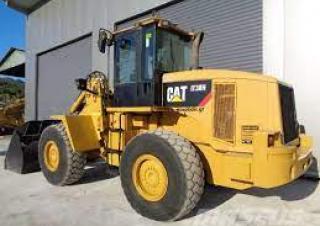

IT 38 H Caterpillar IT 38 H Specifications & Technical Data (2008—2026)

The Caterpillar IT 38 H is a wheel loader that has been manufactured since 2008. It weighs 16 tons and has a transport length of 7…

The Caterpillar IT 38 H is a wheel loader that has been manufactured since 2008. It weighs 16 tons and has a transport length of 7.54 meters. The bucket width is 2.7 meters, and it has a maximum discharge height of 2.81 meters. The travel speed of this machine is 43.2 km/h. It has a transport width of 2.71 meters and a transport height of 3.36 meters. The lifting force of the wheel loader is 126 kN. The maximum bucket capacity is 3 cubic meters, while the minimum bucket capacity is 2.3 cubic meters.

IT 38 H

Years of manufacture: 2008—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - IT 38 H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Standard tyres: 20.5-R25

Bucket width: 2.7 m

Bucket capacity min.: 2.3 m³

Bucket capacity max.: 3 m³

Transport length: 7.54 m

Transport width: 2.71 m

Transport height: 3.36 m

Travel speed: 43.2 km/h

Max. discharge height: 2.81 m

Lifting force: 126 kN

Model series: IT

Engine manuf.: Caterpillar

Engine type: C6.6 Acert

Engine power: 130 kW

Displacement: 6.6 l

Cylinder bore x stroke: 100x127 mm

Emission level: IIIA

More technical details, like: bucket capacity, steering mode, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Caterpillar IT 38 H FAQ

When was the Caterpillar IT 38 H manufactured?

The Caterpillar IT 38 H was first produced in 2008.

How much does the Caterpillar IT 38 H weigh?

The Caterpillar IT 38 H weighs 16 tons.

What are the transport dimensions of the Caterpillar IT 38 H wheel loader?

The Caterpillar IT 38 H has a transport length of 7.54 meters, a transport width of 2.71 meters, and a transport height of 3.36 meters.

What is the travel speed of the Caterpillar IT 38 H wheel loader?

The Caterpillar IT 38 H has a travel speed of 43.2 km/h.

What is the standard tyre size of the Caterpillar IT 38 H?

The Caterpillar IT 38 H has standard tyres sized 20.5-R25.

What are the power ratings of the Caterpillar IT 38 H wheel loader?

Power rating data for the Caterpillar IT 38 H wheel loader is not available in the provided information.

What is the maximum discharge height of the Caterpillar IT 38 H wheel loader?

The Caterpillar IT 38 H has a maximum discharge height of 2.81 meters.

What are the specifications of the primary work tool (bucket) on the Caterpillar IT 38 H wheel loader?

The Caterpillar IT 38 H wheel loader has a bucket with a maximum capacity of 3 cubic meters, a minimum capacity of 2.3 cubic meters, and a width of 2.7 meters.
