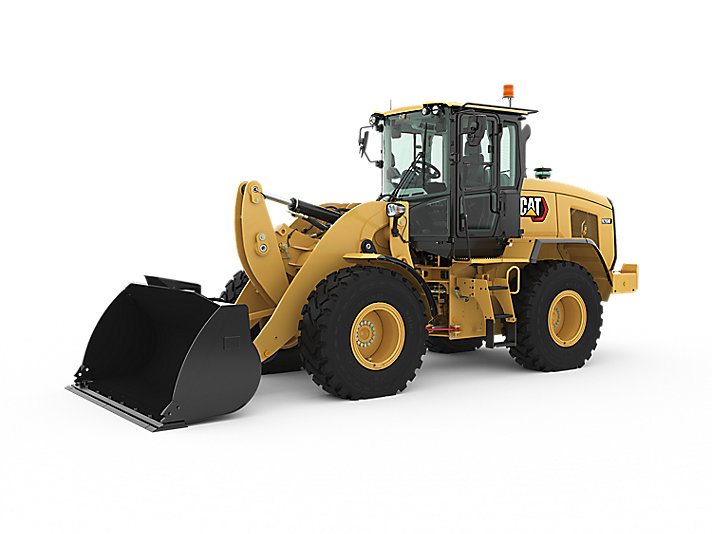

926M Caterpillar 926M Specifications & Technical Data (2020—2026)

The Caterpillar 926M is a wheel loader manufactured since 2020. It has a weight of 13.05 tons and a transport length of 7.451 mete…

The Caterpillar 926M is a wheel loader manufactured since 2020. It has a weight of 13.05 tons and a transport length of 7.451 meters. The bucket capacity ranges from 1.9 to 5 cubic meters, with a bucket width of 2.55 meters. The maximum discharge height is 2.885 meters. It has a travel speed of 40 km/h and a transport width of 2.54 meters. The transport height is 3.669 meters, and the turning radius outside is 5.924 meters. Special equipment includes air conditioning, a diesel particulate filter, and a swing loader.

926M

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 926M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.05 t

Standard tyres: 20.5 R25

Bucket width: 2.55 m

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Bucket capacity max.: 5 m³

Steering mode: KL

Transport length: 7.451 m

Transport width: 2.54 m

Transport height: 3.669 m

Travel speed: 40 km/h

Max. discharge height: 2.885 m

Turning radius outside: 5.924 m

Lifting force: 100.35 kN

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 125 kW

Displacement: 7.1 l

Max. torque: 702 Nm

Cylinder bore x stroke: 105x135 mm

Emission level: EU V

More technical details, like: model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 926M FAQ

When was the Caterpillar 926M manufactured?

The Caterpillar 926M was first produced in 2020.

How much does the Caterpillar 926M wheel loader weigh?

The Caterpillar 926M wheel loader weighs 13.05 tons.

What are the transport dimensions of the Caterpillar 926M wheel loader?

The Caterpillar 926M has a transport length of 7.45 meters, a transport width of 2.54 meters, and a transport height of 3.67 meters.

What is the travel speed of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has a travel speed of 40 km/h.

What is the undercarriage specification of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Caterpillar 926M wheel loader?

The Caterpillar 926M features articulated-frame steering and has an outside turning radius of 5.924 meters.

What is the lifting force of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has a lifting force of 100.35 kN.

What is the maximum discharge height of the Caterpillar 926M wheel loader?

The Caterpillar 926M has a maximum discharge height of 2.89 meters.

What are the bucket specifications of the Caterpillar 926M wheel loader?

The Caterpillar 926M wheel loader has a standard bucket capacity of 1.9 cubic meters, a minimum bucket capacity of 1.9 cubic meters, a maximum bucket capacity of 5 cubic meters, and a bucket width of 2.55 meters.

How much is a Caterpillar 926M Wheel loader (2020u20132025) worth?

The residual value of the Caterpillar 926M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
