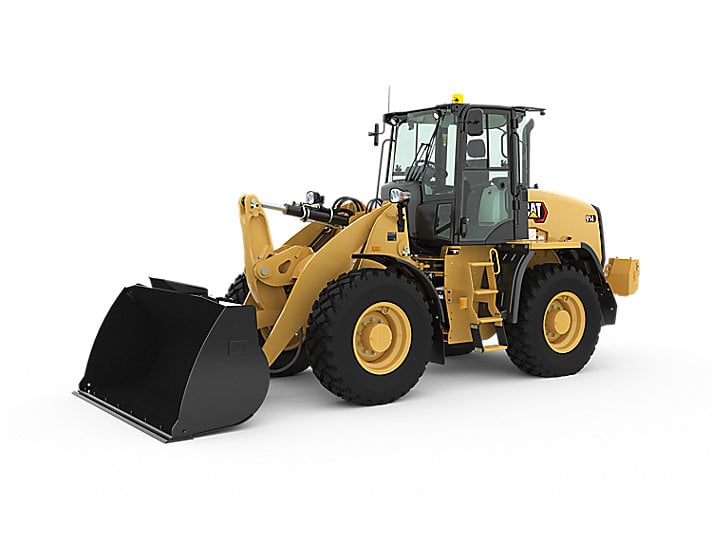

914 Caterpillar 914 Specifications & Technical Data (2020—2026)

The Caterpillar 914 is a wheel loader manufactured since 2020. It has a weight of 8.7 tons and a transport length of 9.362 meters.…

The Caterpillar 914 is a wheel loader manufactured since 2020. It has a weight of 8.7 tons and a transport length of 9.362 meters. The bucket capacity is 1.9 cubic meters, with a width of 2.401 meters. The maximum discharge height is 2.775 meters. It has a travel speed of 20 km/h and a transport width of 2.259 meters. The transport height is 3.283 meters. The turning radius outside is 4.741 meters. The minimum bucket capacity is 1.9 cubic meters.

914

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 914 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.7 t

Standard tyres: 17.5-25 12PR

Bucket width: 2.401 m

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Transport length: 9.362 m

Transport width: 2.259 m

Transport height: 3.283 m

Travel speed: 20 km/h

Max. discharge height: 2.775 m

Turning radius outside: 4.741 m

Engine manuf.: Caterpillar

Engine type: C3.6 Acert

Engine power: 74 kW

Displacement: 3.6 l

Emission level: EU V

More technical details, like: bucket capacity max., steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 914 FAQ

When was the Caterpillar 914 wheel loader manufactured?

The Caterpillar 914 wheel loader was first produced in 2020.

How much does the Caterpillar 914 wheel loader weigh?

The Caterpillar 914 wheel loader weighs 8.7 tons.

What are the transport dimensions of the Caterpillar 914 wheel loader?

The Caterpillar 914 wheel loader has a transport length of 9.36 meters, a transport width of 2.26 meters, and a transport height of 3.28 meters.

What is the travel speed of the Caterpillar 914 wheel loader?

The Caterpillar 914 wheel loader has a travel speed of 20 km/h.

What are the standard tyres of the Caterpillar 914 wheel loader?

The Caterpillar 914 wheel loader is equipped with standard tyres sized 17.5-25 12PR.

What is the outside turning radius of the Caterpillar 914 wheel loader?

The Caterpillar 914 wheel loader has an outside turning radius of 4.741 meters.

What is the material handling capacity of the Caterpillar 914 in terms of discharge height?

The Caterpillar 914 has a maximum discharge height of 2.78 meters.

What are the bucket specifications of the Caterpillar 914 wheel loader?

The Caterpillar 914 wheel loader has a bucket capacity of 1.9 cubic meters and a bucket width of 2.4 meters.
