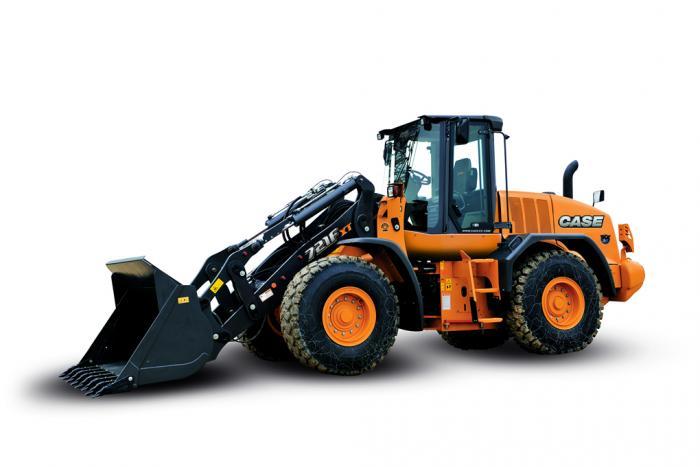

    Case 721 F XT Specifications & Technical Data (2012-2016)

    Rate this machine now!

    case is the manufacturer of the wheel loader model 721 F XT. Find and download detailed specs and data sheets for this machine her... Read more

    case is the manufacturer of the wheel loader model 721 F XT. Find and download detailed specs and data sheets for this machine here.

    The case 721 F XT is a 14.772t machine with CNH engine which powers this model with up to 145kW or 194 horse power. This case wheel loader belongs to the biggest machine segment in the wheel loaders category. The 721 F XT’s size is 2.475m x 8.13m x 3.375m. Standard tyres for this case 721 F XT wheel loader have a size of 20.5-25 RT 3B. The Wheel Loader 721 F XT case is designed to travel at a top speed of 40km/h. The bucket of 721 F XT has a capacity of 2.49m³ which is average for this type of machine. The bucket used on this model is 3m wide.

    Since 2012, this model has included Aircondition. Quick hitch mech., Quick hitch hydr. And Diesel particulate filter are not provided on this model as of 2016. Find detailed specifications and machine details in the original case 721 F XT datasheet. Available in French, German, Spanish, Italian and English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    The production stopped in 2016, where this 721 F XT was available at a new list price between €168000 and €214000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Comparisons of the 721 F XT case with other wheel loader models reveal that, based on specifications and pricing, the model is similar to the Hitachi ZW 180-5, Venieri 13.63 as well as Hitachi ZW180-6. Case currently produces 15 other wheel loaders, which range from 5.3t up to 29.5t - the most visited on LECTURA Specs are 721G, 321F, 121F. Want more detailed specifications? Download the latest case 721 F XT specs data sheet on LECTURA Specs today!

    Technical specs - 721 F XT Case


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 14.77 t
    • Standard tyres 20.5-25 RT 3B
    • Bucket width 3 m
    • Bucket capacity 2.49 m³
    • Bucket capacity min. 2.49 m³
    • Steering mode KL
    • Transport length 8.13 m
    • Transport width 2.47 m
    • Transport height 3.37 m
    • Travel speed 40 km/h
    • Engine manuf. CNH
    • Engine type 667TA-EED
    • Engine power 145 kW
    • Displacement 6.7 l
    • Revolutions at max torque 2000 rpm

    Basic model with ROPS cabin, std. shovel and teeth

    Special equipment

    • Diesel particulate filter
    • Swing loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
