PS4000 Bray PS4000 Specifications & Technical Data (1977—1985)

The Bray PS4000 is a wheel loader that has been manufactured since 1977. It has a weight of 6.214 tons and a transport length of 4…

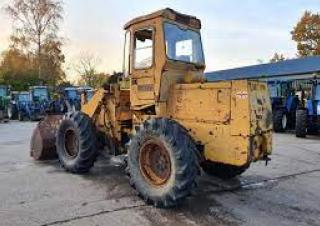

The Bray PS4000 is a wheel loader that has been manufactured since 1977. It has a weight of 6.214 tons and a transport length of 4.268 meters. The bucket capacity is 0.96 cubic meters, with a bucket width of 2.235 meters. The maximum discharge height is 3.848 meters. The transport width is 2.096 meters and the transport height is 3.023 meters. The maximum bucket capacity is also 0.96 cubic meters.

Wheel Loaders Bray PS4000

Technical specs - PS4000 Bray

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.21 t
Standard tyres
14.00 x 24-8
Bucket width
2.24 m
Bucket capacity
0.96 m³
Bucket capacity max.
0.96 m³
Transport length
4.27 m
Transport width
2.1 m
Transport height
3.02 m
Travel speed
34.4 km/h
Max. discharge height
3.85 m
Engine manuf.
Ford
Engine type
27128 4
Engine power
53 kW
Displacement
4.15 l
Revolutions at max torque
2500 rpm
Max. torque
241.2 Nm
No. of cylinders
4
Cylinder bore x stroke
107 x 115 mm

More technical details, like: bucket capacity min., steering mode, turning radius outside, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bray PS4000 FAQ

When was the Bray PS4000 manufactured?

The Bray PS4000 was first produced in 1977.

How much does the Bray PS4000 wheel loader weigh?

The Bray PS4000 wheel loader weighs 6.21 tons.

What are the transport dimensions of the Bray PS4000 wheel loader?

The Bray PS4000 has a transport length of 4.27 meters, a transport width of 2.1 meters, and a transport height of 3.02 meters.

What is the travel speed of the Bray PS4000 wheel loader?

The Bray PS4000 wheel loader has a travel speed of 34.4 km/h.

What are the undercarriage specifications of the Bray PS4000 wheel loader?

The Bray PS4000 wheel loader is equipped with standard tyres sized 14.00 x 24-8.

What is the maximum discharge height of the Bray PS4000?

The Bray PS4000 has a maximum discharge height of 3.85 meters.

What are the specifications of the bucket on the Bray PS4000 wheel loader?

The Bray PS4000 wheel loader has a bucket with a capacity of 0.96 cubic meters and a width of 2.24 meters.

How much is a Bray PS4000 Wheel loader (1977u20132025) worth?

The residual value of the Bray PS4000 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
