AS 150 e Ahlmann AS 150 e Specifications & Technical Data (2008—2012)

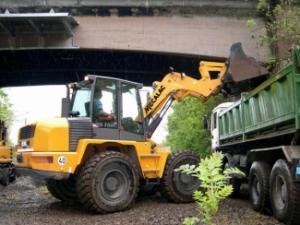

The Ahlmann AS 150 e is a wheel loader manufactured by Ahlmann from 2008 to 2012. It has a weight of 11 tons and a transport lengt…

The Ahlmann AS 150 e is a wheel loader manufactured by Ahlmann from 2008 to 2012. It has a weight of 11 tons and a transport length of 6.58 meters. The bucket capacity is 1.5 cubic meters with a width of 2.48 meters. The maximum discharge height is 3.39 meters. It has a travel speed of 40 km/h and a transport width of 2.46 meters. The transport height is 3.1 meters. The lifting force is 69 kN. The bucket capacity minimum is 1.5 cubic meters. It is equipped with special features such as a quick hitch hydr. and a swing loader.

AS 150 e

Years of manufacture: 2008—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 150 e Ahlmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11 t

Standard tyres: 17.5-25

Bucket width: 2.48 m

Bucket capacity: 1.5 m³

Bucket capacity min.: 1.5 m³

Steering mode: AL

Transport length: 6.58 m

Transport width: 2.46 m

Transport height: 3.1 m

Travel speed: 40 km/h

Max. discharge height: 3.39 m

Lifting force: 69 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD2012 L04 2V

Engine power: 100 kW

Revolutions at max torque: 1500 rpm

More technical details, like: bucket capacity max., turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Ahlmann AS 150 e FAQ

When was the Ahlmann AS 150 e manufactured?

The Ahlmann AS 150 e was manufactured from 2008 to 2012.

How much does the Ahlmann AS 150 e weigh?

The Ahlmann AS 150 e weighs 11 tons.

What are the transport dimensions of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a transport length of 6.58 meters, a transport width of 2.46 meters, and a transport height of 3.1 meters.

What is the travel speed of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a travel speed of 40 km/h.

What are the undercarriage specifications of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e wheel loader is equipped with standard tyres sized 17.5-25.

What is the steering mode of the Ahlmann AS 150 e?

The Ahlmann AS 150 e has all-wheel steering.

What is the lifting force of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a lifting force of 69 kN.

What is the maximum discharge height of the Ahlmann AS 150 e?

The Ahlmann AS 150 e has a maximum discharge height of 3.39 meters.

What are the bucket specifications of the Ahlmann AS 150 e wheel loader?

The Ahlmann AS 150 e has a bucket capacity of 1.5 cubic meters, a minimum bucket capacity of 1.5 cubic meters, and a bucket width of 2.48 meters.
