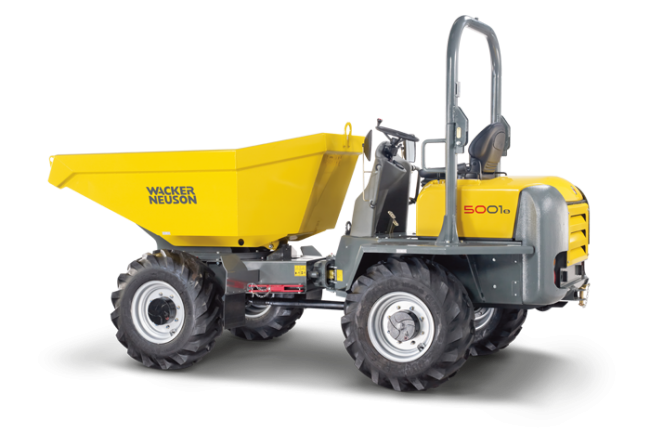

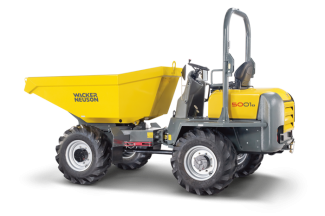

Wacker Neuson 5001 Specifications & Technical Data (2008-2015)

Technical specs - 5001 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.06 t

Standard tyres: 12.50/80x18

Net load: 5 t

Dump capacity: 2 m³

Dumper type: R

Transport length: 5 m

Transport width: 2.21 m

Transport height: 3.08 m

Travel speed: 25 km/h

Turning radius outside: 4.425 m

Engine manuf.: Deutz

Engine type: TD2011

Engine power: 47.5 kW

Displacement: 3.619 l

Revolutions at max torque: 2600 rpm

More technical details, like: loading height, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model...

More technical details, like: loading height, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, std tyre size front, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson 5001 FAQ

When was the Wacker Neuson 5001 manufactured?

The Wacker Neuson 5001 was manufactured from 2008 to 2015.

How much does the Wacker Neuson 5001 wheel dumper weigh?

The Wacker Neuson 5001 wheel dumper weighs 3.06 tons.

What are the transport dimensions of the Wacker Neuson 5001 wheel dumper?

The Wacker Neuson 5001 has a transport length of 5 meters, a transport width of 2.21 meters, and a transport height of 3.08 meters.

What is the travel speed of the Wacker Neuson 5001 wheel dumper?

The Wacker Neuson 5001 has a travel speed of 25 km/h.

What are the undercarriage specifications of the Wacker Neuson 5001 wheel dumper?

The Wacker Neuson 5001 wheel dumper is equipped with standard tyres sized 12.50/80x18.

What is the turning radius of the Wacker Neuson 5001 wheel dumper?

The Wacker Neuson 5001 has an outside turning radius of 4.425 meters.

What is the material handling capacity of the Wacker Neuson 5001 wheel dumper?

The Wacker Neuson 5001 wheel dumper has a net load capacity of 5 tons and a dump capacity of 2 cubic meters.

How much is a Wacker Neuson 5001 Wheel dumper (2008u20132015) worth?

The residual value of the Wacker Neuson 5001 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
