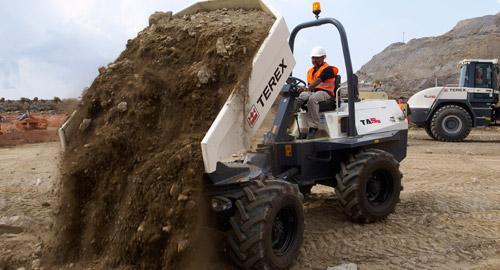

TA 5 S Terex TA 5 S Specifications & Technical Data (2010—2013)
Technical specs - TA 5 S Terex
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4 t
- Standard tyres
- 12.0x18
- Net load
- 5 t
- Dump capacity
- 2.91 m³
- Dumper type
- S
- Transport length
- 5 m
- Transport width
- 2.075 m
- Transport height
- 2.84 m
- Travel speed
- 15.5 km/h
- Loading height
- 1.69 m
- Turning radius outside
- 5.4 m
- Model series
- TA
- Engine manuf.
- Perkins
- Engine type
- 1104D-44T
- Engine power
- 63 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 2200 rpm
- Emission level
- Tier 3
More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
Yes
- Track
-
No
- Aircondition
-
No
