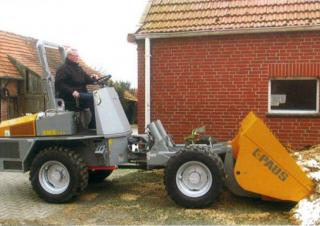

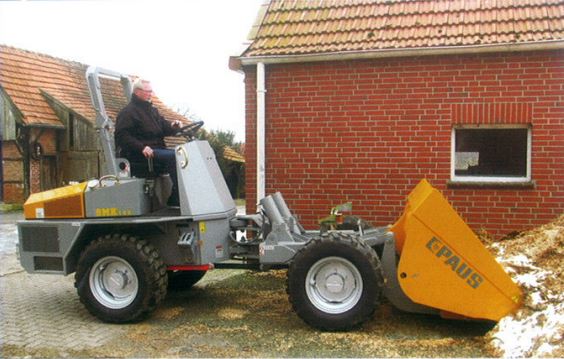

Paus SMK 163 Specifications & Technical Data (2008-2017)

Technical specs - SMK 163 Paus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.8 t

Standard tyres: 15.5/55-R18

Net load: 3.5 t

Dump capacity: 1.9 m³

Dumper type: S

Transport length: 4.25 m

Transport width: 1.75 m

Transport height: 2.65 m

Travel speed: 20 km/h

Turning radius outside: 3.8 m

Model series: SMK

Engine manuf.: Deutz

Engine type: D2011 L03i

Engine power: 32 kW

Displacement: 2.33 l

Revolutions at max torque: 2300 rpm

More technical details, like: loading height, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output...

More technical details, like: loading height, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, width, overall length, wheelbase, ground clearance, width - skip, turning radius - inside, turning radius - outside, chassis articulation, payload - heaped, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

SMK 163 Paus Specification for Europe (DE)

Paus SMK 163 FAQ

When was the Paus SMK 163 manufactured?

The Paus SMK 163 was manufactured from 2008 to 2017.

How much does the Paus SMK 163 wheel dumper weigh?

The Paus SMK 163 wheel dumper weighs 2.8 tons.

What are the transport dimensions of the Paus SMK 163 wheel dumper?

The Paus SMK 163 has a transport length of 4.25 meters, a transport width of 1.75 meters, and a transport height of 2.65 meters.

What is the travel speed of the Paus SMK 163 wheel dumper?

The Paus SMK 163 has a travel speed of 20 km/h.

What are the standard tyre specifications for the Paus SMK 163 wheel dumper's undercarriage?

The Paus SMK 163 wheel dumper is equipped with standard tyres sized 15.5/55-R18.

What is the outside turning radius of the Paus SMK 163 wheel dumper?

The Paus SMK 163 has an outside turning radius of 3.8 meters.

What is the material handling capacity of the Paus SMK 163 wheel dumper?

The Paus SMK 163 has a net load capacity of 3.5 tons and a dump capacity of 1.9 cubic meters.
