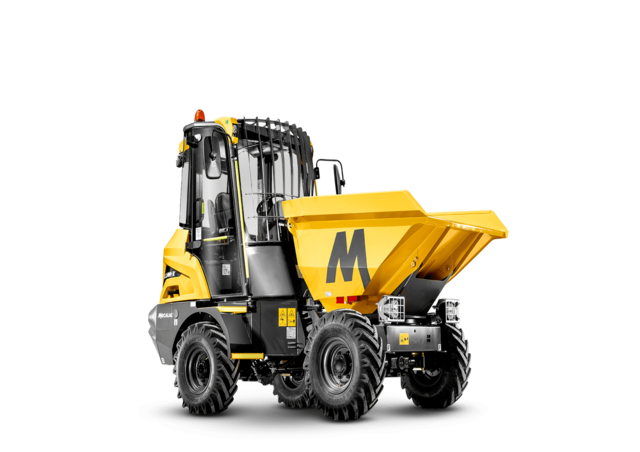

3.5sMDX Mecalac 3.5sMDX Specifications & Technical Data (2021—2026)
Technical specs - 3.5sMDX Mecalac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.915 t
- Standard tyres
- 295/80 R15.3 10PR
- Net load
- 3.5 t
- Dump capacity
- 1.52 m³
- Dumper type
- V
- Transport length
- 4.012 m
- Transport width
- 1.846 m
- Transport height
- 2.663 m
- Travel speed
- 20 km/h
- Loading height
- 1.47 m
- Turning radius outside
- 4.553 m
- Model series
- SMDX
- Engine manuf.
- Kubota
- Engine type
- D1803
- Engine power
- 37 kW
- Displacement
- 1.8 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
Download datasheets (PDF)
Mecalac 3.5sMDX FAQ
How much does the Mecalac 3.5sMDX wheel dumper weigh?
What are the transport dimensions of the Mecalac 3.5sMDX wheel dumper?
What is the travel speed of the Mecalac 3.5sMDX wheel dumper?
What are the undercarriage specifications of the Mecalac 3.5sMDX wheel dumper?
What is the outside turning radius of the Mecalac 3.5sMDX wheel dumper?
What is the material handling capacity of the Mecalac 3.5sMDX wheel dumper?
How much is a Mecalac 3.5sMDX Wheel dumper (2021u20132025) worth?
Machine inspection
Ask for inspection of your Mecalac 3.5sMDX from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Mecalac 3.5sMDX with similar Wheel Dumpers

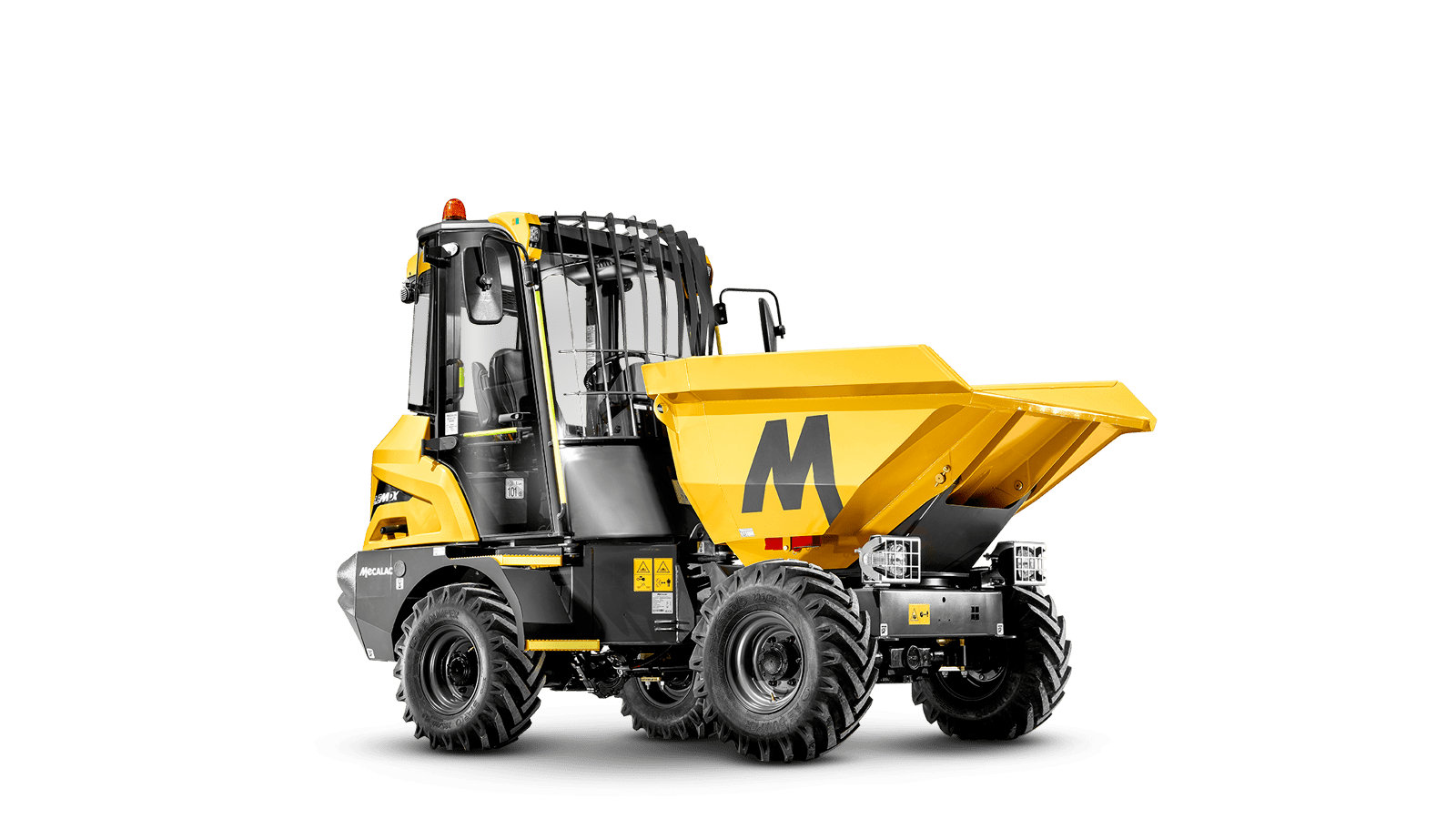

Mecalac 3.5sMDX
