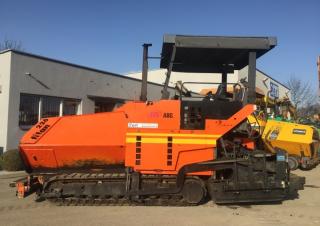

IR-ABG Titan 226 Specifications & Technical Data (2003-2005)

Technical specs - Titan 226 IR-ABG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.5 t

Transport length: 6.25 m

Transport width: 2.5 m

Transport height: 2.94 m

Standard width: 3 m

Max. width: 7.5 m

Hydr. extension from: 3 m

Hydr. extension up to: 6 m

Drive: DH

Model series: Titan

Engine manuf.: Deutz

Engine type: BF6M1013EC

Engine power: 129 kW

More technical details, like: soil pressure, bunker capacity, operating speed, type of screed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: Yes

IR-ABG Titan 226 FAQ

When was the IR-ABG Titan 226 manufactured?

The IR-ABG Titan 226 was manufactured from 2003 to 2005.

How much does the IR-ABG Titan 226 weigh?

The IR-ABG Titan 226 weighs 17.5 tons.

What are the transport dimensions of the IR-ABG Titan 226?

The IR-ABG Titan 226 has a transport length of 6.25 meters, a transport width of 2.5 meters, and a transport height of 2.94 meters.

What type of drive system does the IR-ABG Titan 226 use in its undercarriage?

The IR-ABG Titan 226 uses a diesel hydraulic drive system in its undercarriage.

What are the paving width and extension capabilities of the IR-ABG Titan 226 asphalt paver?

The IR-ABG Titan 226 has a standard paving width of 3 meters, a maximum paving width of 7.5 meters, and a hydraulic extension range from 3 to 6 meters.
