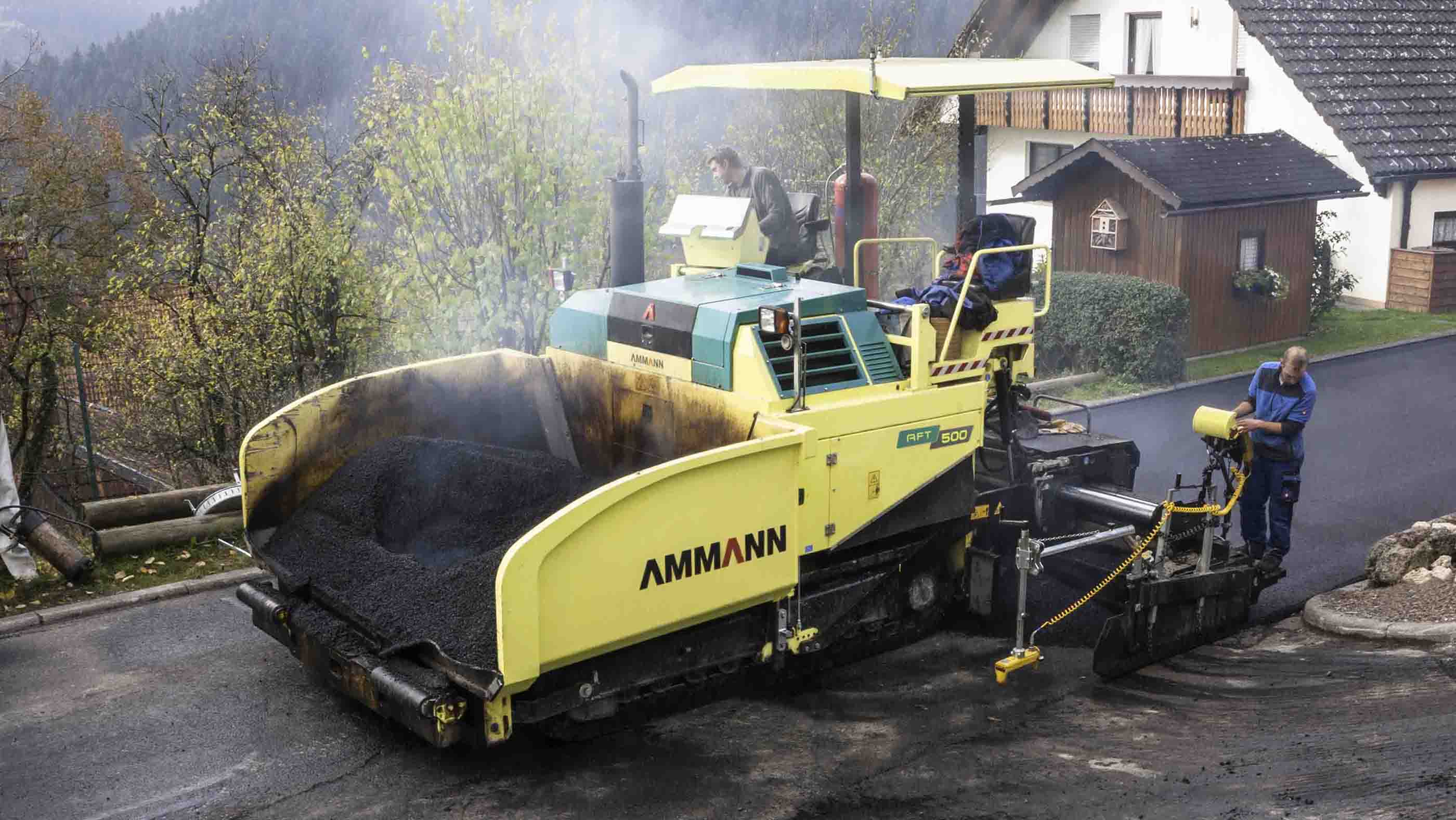

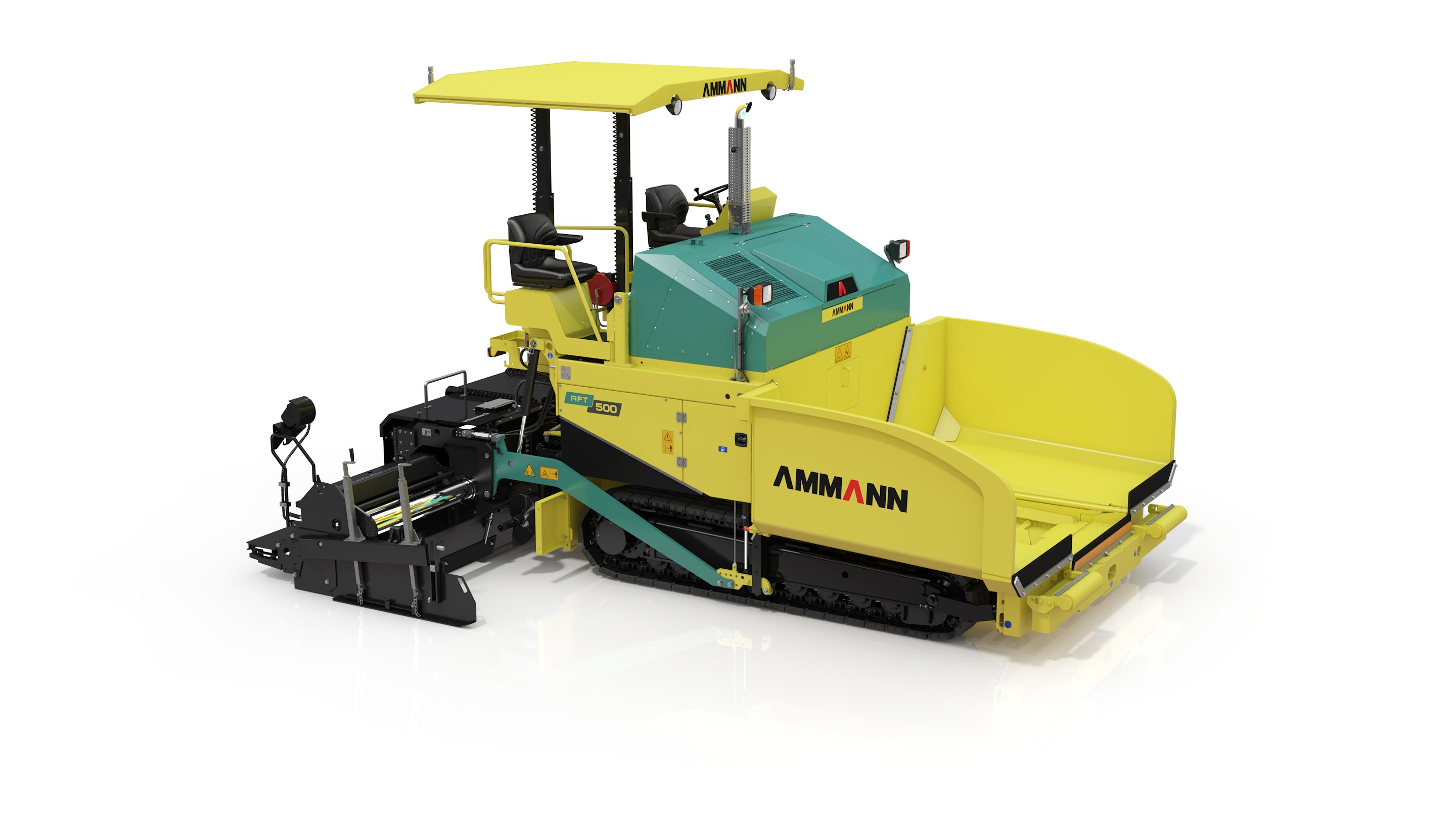

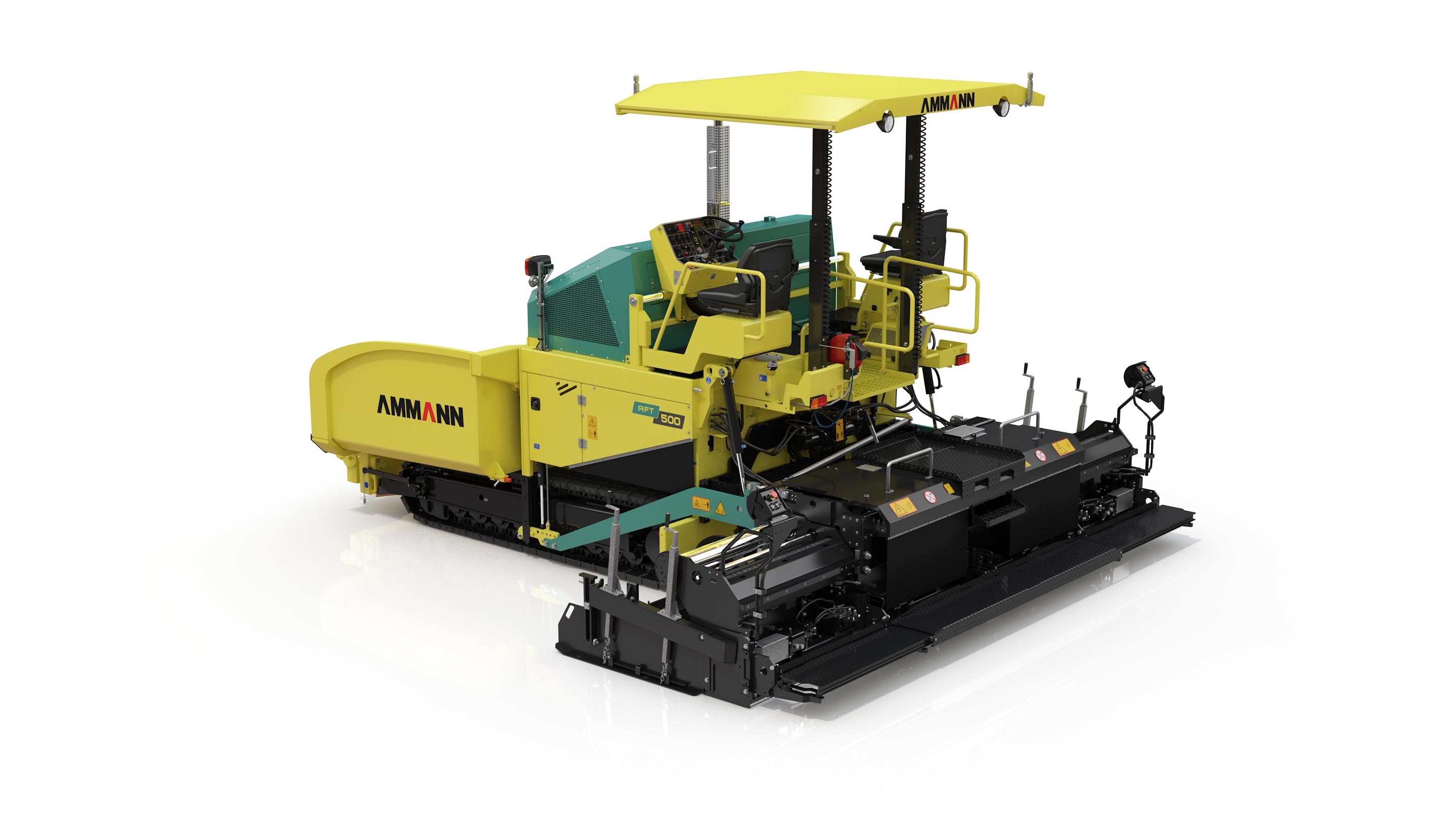

AFT 500 E/G Ammann AFT 500 E/G Specifications & Technical Data (2009—2016)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - AFT 500 E/G Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15 t
- Transport length
- 6.1 m
- Transport width
- 2.55 m
- Transport height
- 3.52 m
- Standard width
- 2.55 m
- Max. width
- 4.9 m
- Hydr. extension from
- 1.5 m
- Hydr. extension up to
- 6.5 m
- Bunker capacity
- 6 m³
- Operating speed
- 37 m/min
- Model series
- AFT
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 119 kW
- Displacement
- 4.5 l
- Revolutions at max torque
- 1500 rpm
- Emission level
- IIIb
More technical details, like: drive, soil pressure, type of screed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
Yes
- Vibration
-
Yes
- High compaction
-
No
- Spray unit
-
No
- Tamper
-
Yes
