Titan 223 IR-ABG Titan 223 Specifications & Technical Data (1992—1997)

Weight: 16t – Transport length: 5.77m – Transport width: 2.5m – Transport height: 3.65m – Max. width: 7m – Hydr. extension from: 2.5m

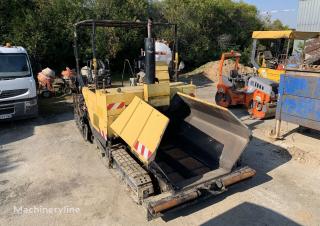

Tracked Asphalt Pavers IR-ABG Titan 223

Technical specs - Titan 223 IR-ABG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Transport length
5.77 m
Transport width
2.5 m
Transport height
3.65 m
Max. width
7 m
Hydr. extension from
2.5 m
Hydr. extension up to
5 m
Drive
DH
Model series
Titan
Engine manuf.
Deutz
Engine type
F6L913
Engine power
89 kW

More technical details, like: standard width, soil pressure, bunker capacity, operating speed, type of screed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
Yes
Vibration
No
High compaction
No
Spray unit
No
Tamper
No

IR-ABG Titan 223 FAQ

When was the IR-ABG Titan 223 manufactured?

The IR-ABG Titan 223 was manufactured from 1992 to 1997.

How much does the IR-ABG Titan 223 weigh?

The IR-ABG Titan 223 weighs 16 tons.

What are the transport dimensions of the IR-ABG Titan 223?

The IR-ABG Titan 223 has a transport length of 5.77 meters, a transport width of 2.5 meters, and a transport height of 3.65 meters.

What are the undercarriage specifications of the IR-ABG Titan 223?

The IR-ABG Titan 223 has a diesel hydraulic drive.

What are the paving performance specifications of the IR-ABG Titan 223?

The IR-ABG Titan 223 has a maximum paving width of 7 meters, with a hydraulic extension range from 2.5 meters up to 5 meters.

How much is a IR-ABG Titan 223 Tracked Asphalt Paver (1992u20131997) worth?

The residual value of the IR-ABG Titan 223 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
