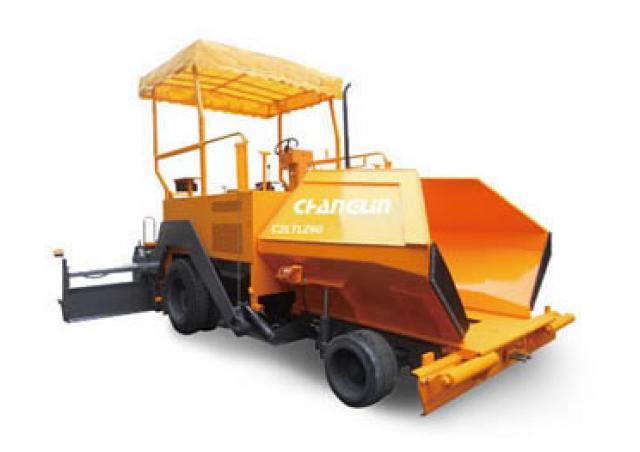

Changlin C2LTLZ60 Specifications & Technical Data (2017-2026)

Technical specs - C2LTLZ60 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14 t

Transport length: 6.064 m

Transport width: 2.733 m

Transport height: 2.888 m

Standard width: 2.8 m

Max. width: 6 m

Operating speed: 9.14 m/min

Model series: C2

Engine manuf.: Weichai

Engine type: BF6L913

Engine power: 86 kW

More technical details, like: hydr. extension from, hydr. extension up to, drive, soil pressure, bunker capacity, type of screed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: No
High compaction: No
Spray unit: No
Tamper: No

Changlin C2LTLZ60 FAQ

When was the Changlin C2LTLZ60 manufactured?

The Changlin C2LTLZ60 was first produced in 2017.

What is the weight of the Changlin C2LTLZ60 tracked asphalt paver?

The Changlin C2LTLZ60 tracked asphalt paver weighs 14 tons.

What are the transport dimensions of the Changlin C2LTLZ60 tracked asphalt paver?

The Changlin C2LTLZ60 has a transport length of 6.06 meters, a transport width of 2.73 meters, and a transport height of 2.89 meters.

What is the operating speed of the Changlin C2LTLZ60 tracked asphalt paver?

The Changlin C2LTLZ60 has an operating speed of 9.14 meters per minute.

What are the paving performance specifications of the Changlin C2LTLZ60 asphalt paver?

The Changlin C2LTLZ60 has a standard paving width of 2.8 meters, a maximum paving width of 6 meters, and an operating speed of 9.14 meters per minute.

How much is a Changlin C2LTLZ60 Tracked Asphalt Paver (2017u20132025) worth?

The residual value of the Changlin C2LTLZ60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
