Volvo SD115F Specifications & Technical Data (2013-2016)

Technical specs - SD115F Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.02 t

Transport length: 5.9 m

Transport width: 2.29 m

Transport height: 3.09 m

Travel speed: 11.3 km/h

Frequency: 33.8 Hz

Roller width: 2.13 m

Rollers Ø: 1.5 m

Amplitude: 2.14 mm

Model series: SD

More technical details, like: vibration, drive, turning radius outside, turning radius inside, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: vibration, drive, turning radius outside, turning radius inside, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No

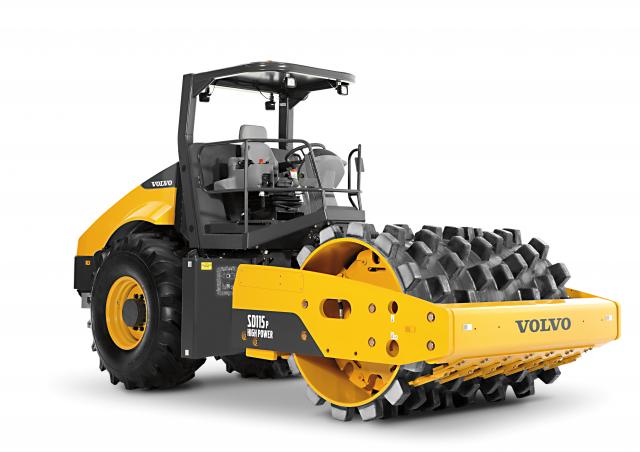

Sheep foot: Yes
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Volvo SD115F FAQ

When was the Volvo SD115F manufactured?

The Volvo SD115F was manufactured from 2013 to 2016.

How much does the Volvo SD115F weigh?

The Volvo SD115F weighs 12.02 tons.

What are the transport dimensions of the Volvo SD115F single-drum roller?

The Volvo SD115F has a transport length of 5.9 meters, a transport width of 2.29 meters, and a transport height of 3.09 meters.

What is the travel speed of the Volvo SD115F single-drum roller?

The Volvo SD115F has a travel speed of 11.3 km/h.

What are the compaction performance specifications of the Volvo SD115F?

The Volvo SD115F operates at a vibration frequency of 33.8 Hz with an amplitude of 2.14 mm.

What are the roller specifications of the Volvo SD115F single-drum roller?

The Volvo SD115F has a roller width of 2.13 meters and a roller diameter of 1.5 meters.

How much is a Volvo SD115F Single-drum Roller (2013u20132016) worth?

The residual value of the Volvo SD115F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
