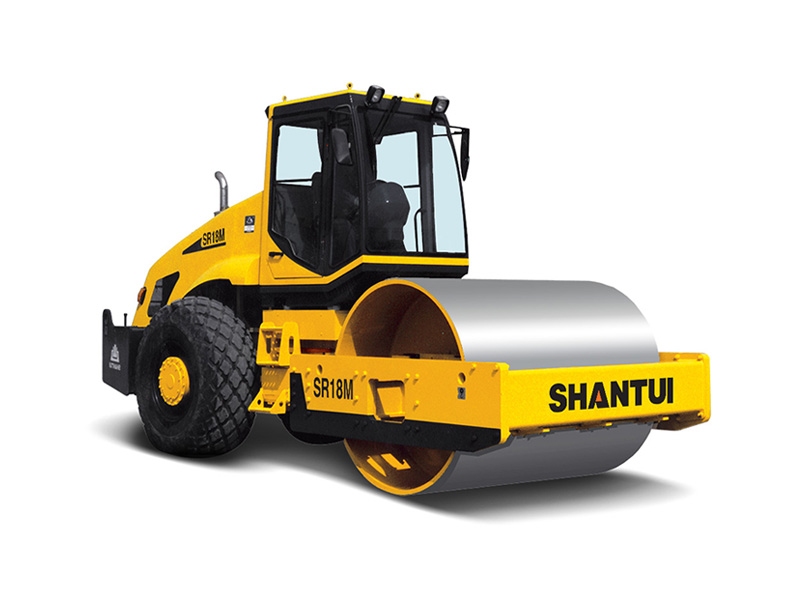

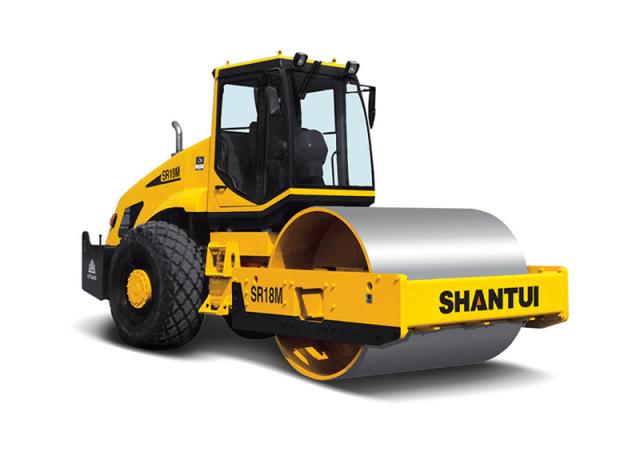

SR18M Shantui SR18M Specifications & Technical Data (2018—2025)

Weight: 18t – Transport length: 5.99m – Transport width: 2.37m – Transport height: 3.22m – Vibration: e – Drive: E

Rollers Single-drum Rollers Shantui SR18M

Technical specs - SR18M Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18 t
Transport length
5.99 m
Transport width
2.37 m
Transport height
3.22 m
Vibration
e
Drive
E
Frequency
30 Hz
Roller width
2.14 m
Amplitude
2 mm
Statical line load
44 kg/cm
Model series
14-26T
Engine manuf.
Yuchai
Engine type
YC6B150Z-T21
Engine power
110 kW

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Shantui SR18M FAQ

When was the Shantui SR18M manufactured?

The Shantui SR18M was first produced in 2018.

How much does the Shantui SR18M weigh?

The Shantui SR18M weighs 18 tons.

What are the transport dimensions of the Shantui SR18M single-drum roller?

The Shantui SR18M has a transport length of 5.99 meters, a transport width of 2.37 meters, and a transport height of 3.22 meters.

What type of drive system does the Shantui SR18M use in its undercarriage?

The Shantui SR18M uses a simple drive system in its undercarriage.

What are the compaction capabilities of the Shantui SR18M single-drum roller?

The Shantui SR18M features a single vibration system with a frequency of 30 Hz, an amplitude of 2 mm, and a statical line load of 44 kg/cm.

What is the roller width of the Shantui SR18M single-drum roller?

The Shantui SR18M has a roller width of 2.14 meters.
