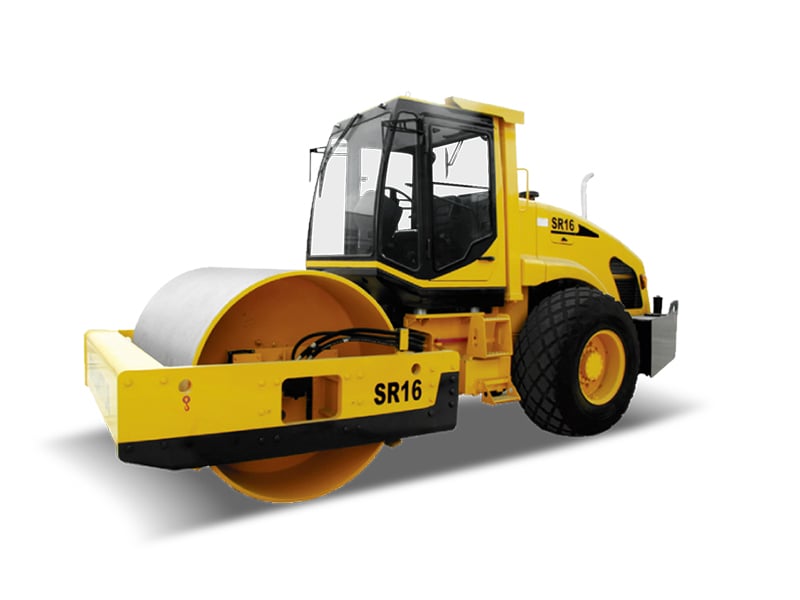

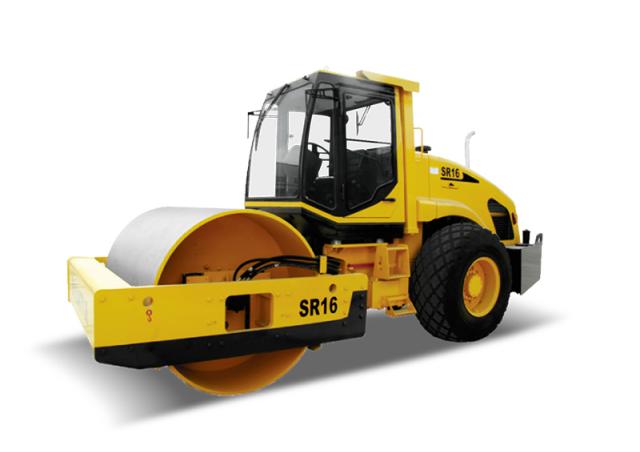

Shantui SR16 Specifications & Technical Data (2018-2020)

Technical specs - SR16 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16 t

Transport length: 5.71 m

Transport width: 2.45 m

Transport height: 2.98 m

Vibration: e

Drive: E

Frequency: 32 Hz

Roller width: 2.14 m

Amplitude: 1.8 mm

Statical line load: 51 kg/cm

Model series: 14-26T

Engine manuf.: Cummins

Engine type: 6BT5.9-C152

Engine power: 112 kW

More technical details, like: travel speed, rollers Ø, turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Shantui SR16 FAQ

When was the Shantui SR16 manufactured?

The Shantui SR16 was manufactured from 2018 to 2020.

How much does the Shantui SR16 weigh?

The Shantui SR16 weighs 16 tons.

What are the transport dimensions of the Shantui SR16 single-drum roller?

The Shantui SR16 has transport dimensions of 5.71 meters in length, 2.45 meters in width, and 2.98 meters in height.

What type of drive system does the Shantui SR16 have in its undercarriage?

The Shantui SR16 has a simple drive system in its undercarriage.

What are the compaction specifications of the Shantui SR16 single-drum roller?

The Shantui SR16 features a single vibration system with a frequency of 32 Hz, an amplitude of 1.8 mm, and a statical line load of 51 kg/cm.

What is the roller width of the Shantui SR16 single-drum roller?

The Shantui SR16 has a roller width of 2.14 meters.

How much is a Shantui SR16 Single-drum Roller (2018u20132020) worth?

The residual value of the Shantui SR16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
