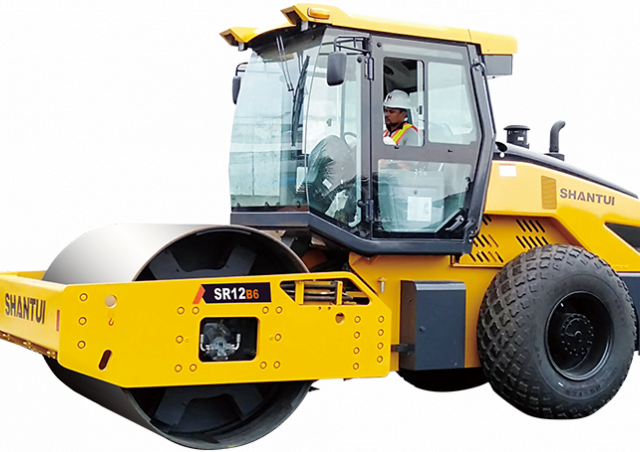

Shantui SR12-B6
- Weight:
- 12 t
- Transport length:
- 5.89 m
- Transport width:
- 2.305 m
- Transport height:
- 3.16 m
SR12-B6 Shantui SR12-B6 Specifications & Technical Data (2025—2026)
Technical specs - SR12-B6 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12 t
- Transport length
- 5.89 m
- Transport width
- 2.305 m
- Transport height
- 3.16 m
- Travel speed
- 9.9 km/h
- Frequency
- 36 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2 mm
- Turning radius inside
- 6.4 m
- Centrifugal force
- 290 kN
- Engine manuf.
- Weichai
- Engine type
- WP4G130E22
- Engine power
- 97.5 kW
- Displacement
- 4.5 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 560 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105x130 mm
- Emission level
- Stage II / China II
More technical details, like: vibration, drive, turning radius outside, statical line load, model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
