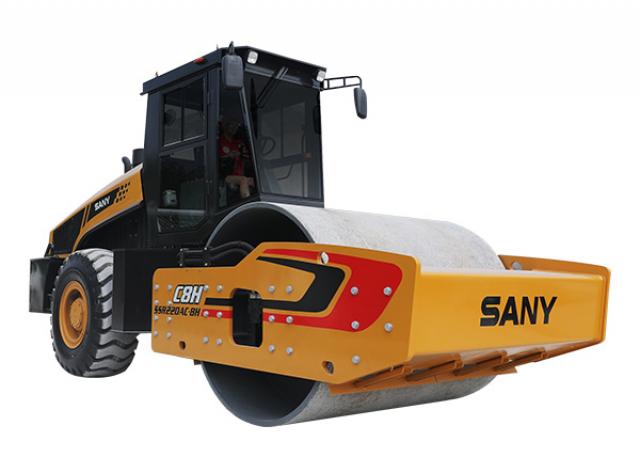

SSR220AC-8H Sany SSR220AC-8H Specifications & Technical Data (2020—2026)
Visit Sany live at
Technical specs - SSR220AC-8H Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22 t
- Transport length
- 6.62 m
- Transport width
- 2.27 m
- Transport height
- 3.33 m
- Vibration
- d
- Drive
- E
- Travel speed
- 8 km/h
- Frequency
- 35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.6 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 12.35 m
- Statical line load
- 51.6 kg/cm
- Centrifugal force
- 390 kN
- Model series
- SSR
- Engine manuf.
- Weichai
- Engine type
- WP6G200E331
- Engine power
- 147 kW
- No. of cylinders
- 6
- Emission level
- China III
More technical details, like: turning radius inside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
