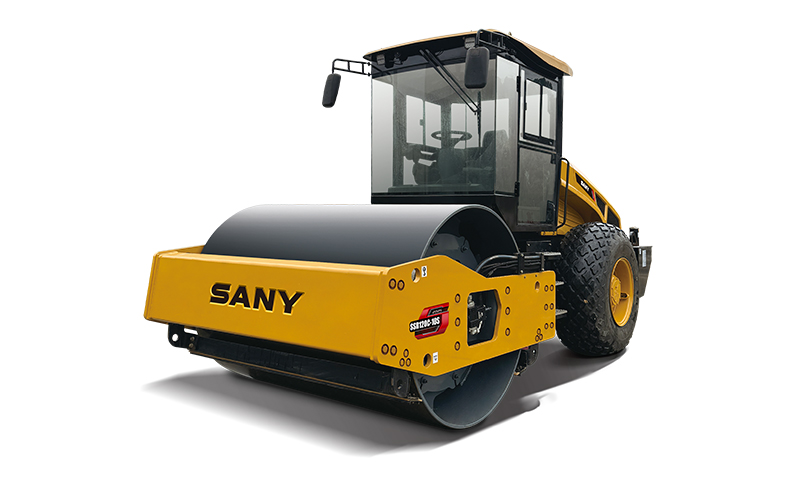

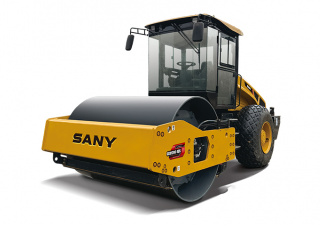

SSR120C-10S Sany SSR120C-10S Specifications & Technical Data (2025—2026)

Weight: 12.4t – Transport length: 5.785m – Transport width: 2.285m – Transport height: 3m – Travel speed: 10.5km/h – Frequency: 32/40Hz

Rollers Single-drum Rollers Sany SSR120C-10S

Visit Sany live at

Technical specs - SSR120C-10S Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.4 t
Transport length
5.785 m
Transport width
2.285 m
Transport height
3 m
Travel speed
10.5 km/h
Frequency
32/40 Hz
Roller width
2.13 m
Rollers Ø
1.5 m
Turning radius outside
11.7 m
Centrifugal force
280 kN
Model series
SSR
Engine manuf.
Isuzu
Engine type
4HK1XDEAA-01
Engine power
133 kW
Displacement
5.19 l
Max. torque
657/1500 Nm
Emission level
Euro II

More technical details, like: vibration, drive, amplitude, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
