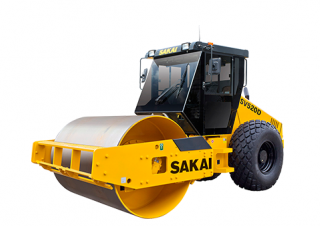

SV520D Sakai SV520D Specifications & Technical Data (2018—2026)

Weight: 10.45t – Transport length: 5.84m – Transport width: 2.295m – Transport height: 2.91m – Travel speed: 10km/h – Frequency: 33.3Hz

Rollers Single-drum Rollers Sakai SV520D

Technical specs - SV520D Sakai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.45 t
Transport length
5.84 m
Transport width
2.295 m
Transport height
2.91 m
Travel speed
10 km/h
Frequency
33.3 Hz
Roller width
2.13 m
Rollers Ø
1.53 m
Amplitude
2.09 mm
Turning radius outside
5.6 m
Turning radius inside
3.5 m
Centrifugal force
255 kN
Model series
SV520
Engine manuf.
Isuzu
Engine type
4BG1T
Engine power
83.3 kW
Displacement
4.329 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Emission level
Tier 2

More technical details, like: vibration, drive, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Sakai SV520D FAQ

When was the Sakai SV520D manufactured?

The Sakai SV520D was first produced in 2018.

How much does the Sakai SV520D weigh?

The Sakai SV520D weighs 10.45 tons.

What are the transport dimensions of the Sakai SV520D single-drum roller?

The Sakai SV520D has a transport length of 5.84 meters, a transport width of 2.3 meters, and a transport height of 2.91 meters.

What is the travel speed of the Sakai SV520D single-drum roller?

The Sakai SV520D has a travel speed of 10 km/h.

What are the turning radius specifications for the Sakai SV520D?

The Sakai SV520D has an outside turning radius of 5.6 meters and an inside turning radius of 3.5 meters.

What are the compaction capabilities of the Sakai SV520D single-drum roller?

The Sakai SV520D operates at a vibration frequency of 33.3 Hz, has an amplitude of 2.09 mm, and generates a centrifugal force of 255 kN in its compaction system.

What are the roller specifications of the Sakai SV520D single-drum roller?

The Sakai SV520D has a roller width of 2.13 meters and a roller diameter of 1.53 meters.

How much is a Sakai SV520D Single-drum Roller (2018u20132025) worth?

The residual value of the Sakai SV520D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sakai SV520D overview

Engine and powertrain

Low Operating Costs

Sakai’s new Eco compaction mode (ECM) reduces fuel consumption by up to 20% while maintaining compactive performance. Additionally, quality and durable components such as hydraulics, drum, and center-pin hitch provide less maintenance.


Roller

Vibratory single drum roller

The innovatively designed SV520 is applicable to medium to large soil compaction jobs. The SV520 includes new roller features and optimizes job profitability through efficiency.


Proven Compactive Performance

Roller compactive force reaches target density in less number of roller passes. Provides higher centrifugal force and amplitude. Achieves uniform compaction throughout lift thickness.


Operator's station

Operator Comfort and Safety

Includes Sakai’s durable dual rubber isolation system between the drum and operator deck. Extremely quiet operator station with noise levels as low as 87 dB(A).
