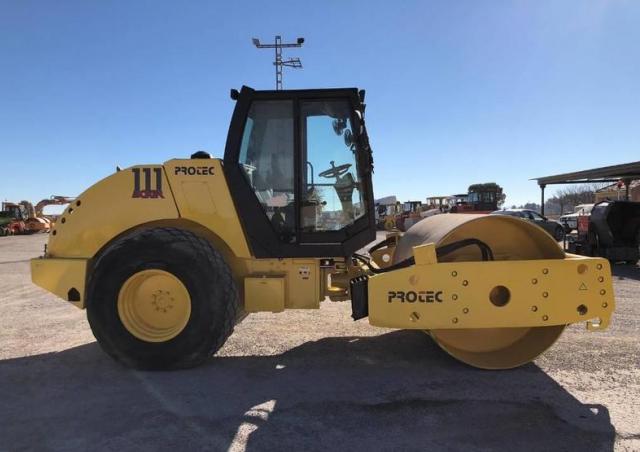

Boxer 111 Protec Boxer 111 Specifications & Technical Data (2009—2011)
Technical specs - Boxer 111 Protec
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.5 t
- Transport length
- 5.8 m
- Transport width
- 2.3 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12.5 km/h
- Frequency
- 40 Hz
- Roller width
- 2.1 m
- Model series
- Boxer
- Engine manuf.
- Cummins
- Engine type
- QSB4.5
- Engine power
- 110 kW
- Displacement
- 4.5 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: transport height, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
