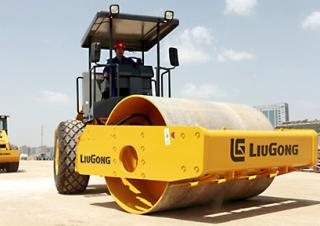

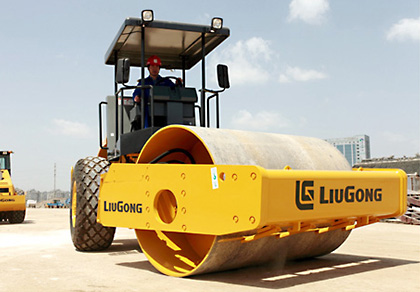

CLG611H Liugong CLG611H Specifications & Technical Data (2014—2019)
Visit Liugong live at
.jpg){kind=logo}
Technical specs - CLG611H Liugong
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.24 t
- Transport length
- 6 m
- Transport width
- 2.3 m
- Transport height
- 3.05 m
- Travel speed
- 10.5 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 6.5 m
- Turning radius inside
- 4.37 m
- Statical line load
- 25.49 kg/cm
- Centrifugal force
- 270 kN
- Model series
- CLG
- Engine manuf.
- Cummins
- Engine type
- 4B3.9
- Engine power
- 84 kW
- Displacement
- 3.9 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 480 Nm
- No. of cylinders
- 4
- Emission level
- Tier 2/EU II
More technical details, like: vibration, drive, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
