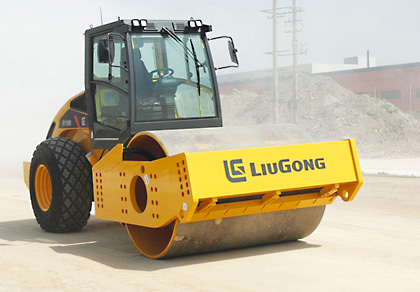

6118H Liugong 6118H Specifications & Technical Data (2013—2019)
Visit Liugong live at
.jpg){kind=logo}
Technical specs - 6118H Liugong
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 18.5 t
- Transport length
- 6.28 m
- Transport width
- 2.32 m
- Transport height
- 3 m
- Travel speed
- 12 km/h
- Frequency
- 32 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2 mm
- Turning radius outside
- 6.5 m
- Turning radius inside
- 4.4 m
- Statical line load
- 54.8 kg/cm
- Engine manuf.
- Cummins
- Engine type
- n/a
- Engine power
- 127 kW
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 685 Nm
- No. of cylinders
- 6
- Emission level
- Tier 3/EU IIIA
More technical details, like: vibration, drive, centrifugal force, model series, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
