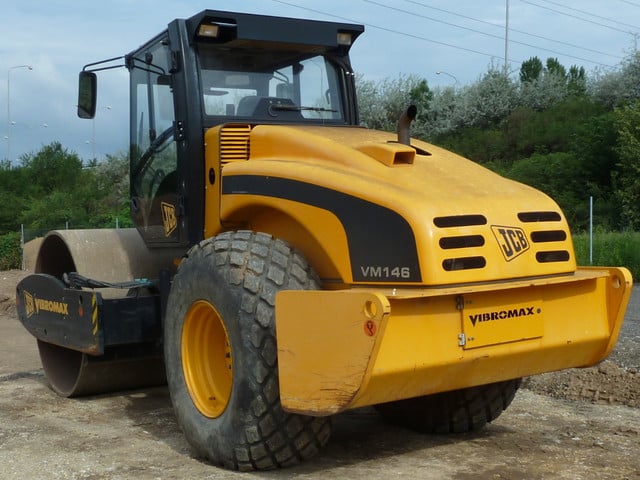

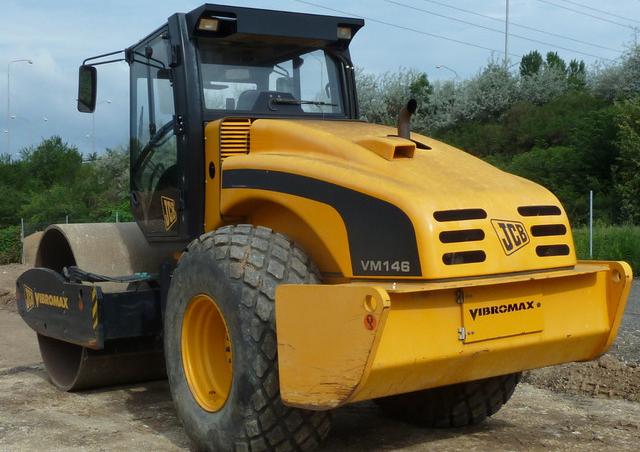

VM 146 D T3 JCB-Vibromax VM 146 D T3 Specifications & Technical Data (2008—2014)
Technical specs - VM 146 D T3 JCB-Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14.5 t
- Transport length
- 5.722 m
- Transport width
- 2.27 m
- Transport height
- 2.935 m
- Drive
- A
- Travel speed
- 11.4 km/h
- Frequency
- 35 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 3.6 m
- Statical line load
- 38.1 kg/cm
- Model series
- VM
- Engine manuf.
- JCB
- Engine type
- 444 TCA
- Engine power
- 120 kW
- Displacement
- 4.399 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: vibration, turning radius inside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
