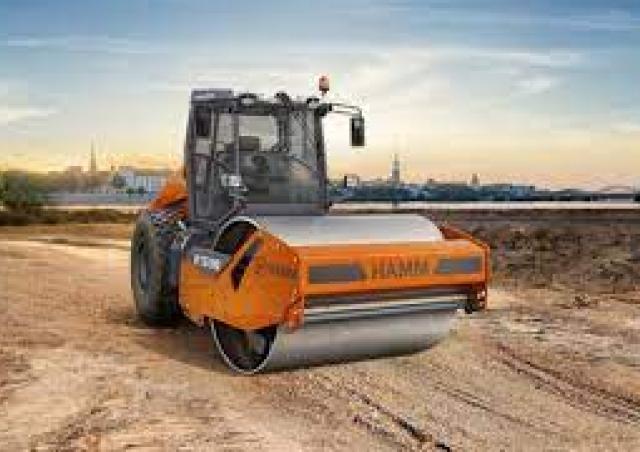

H 14i P Hamm H 14i P Specifications & Technical Data (2021—2026)
Visit Hamm live at
Technical specs - H 14i P Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14.51 t
- Transport length
- 5.96 m
- Transport width
- 2.28 m
- Transport height
- 3.09 m
- Travel speed
- 12 km/h
- Frequency
- 36 Hz
- Roller width
- 2.14 m
- Rollers Ø
- 1.684 m
- Amplitude
- 1.76 mm
- Turning radius inside
- 3.87 m
- Centrifugal force
- 249 kN
- Model series
- H
- Engine manuf.
- Deutz
- Engine type
- TCD 4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.1 l
- No. of cylinders
- 4
- Emission level
- EU Stage V / EPA Tier 4
More technical details, like: vibration, drive, turning radius outside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
