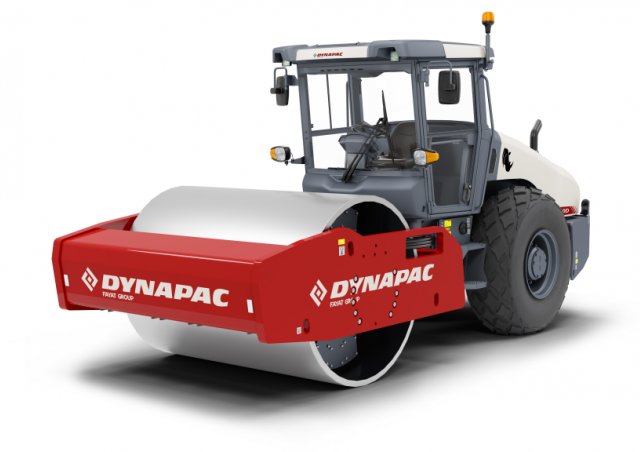

CA50D Rhino Dynapac CA50D Rhino Specifications & Technical Data (2026—2026)
Visit Dynapac live at
Technical specs - CA50D Rhino Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 15.31 t
- Transport length
- 6.236 m
- Transport width
- 2.36 m
- Transport height
- 2.145 m
- Travel speed
- 11 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.573 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.63 m
- Turning radius inside
- 3.5 m
- Statical line load
- 49.6 kg/cm
- Centrifugal force
- 302 kN
- Model series
- CA
- Engine manuf.
- Cummins
- Engine type
- 4BTAA3.9
- Engine power
- 97 kW
- Emission level
- Stage II/Tier 2
More technical details, like: vibration, drive, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
