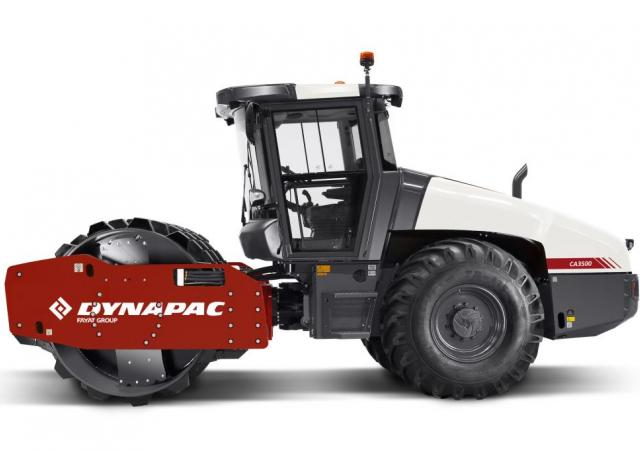

CA3500PD Dynapac CA3500PD Specifications & Technical Data (2026—2026)
Visit Dynapac live at
Technical specs - CA3500PD Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.9 t
- Transport length
- 5.99 m
- Transport width
- 2.304 m
- Transport height
- 2.13 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.45 m
- Turning radius inside
- 3.3 m
- Centrifugal force
- 260 kN
- Model series
- CA
- Engine manuf.
- Cummins
- Engine type
- F3.8
- Engine power
- 100 kW
- Emission level
- Stage V/T4Final
More technical details, like: statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
