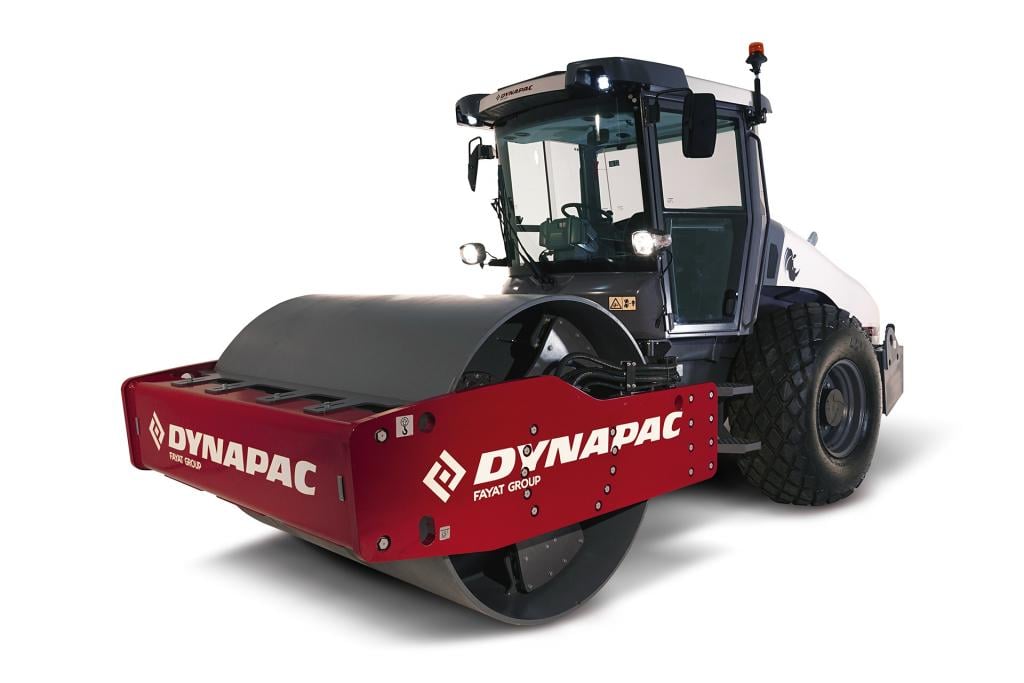

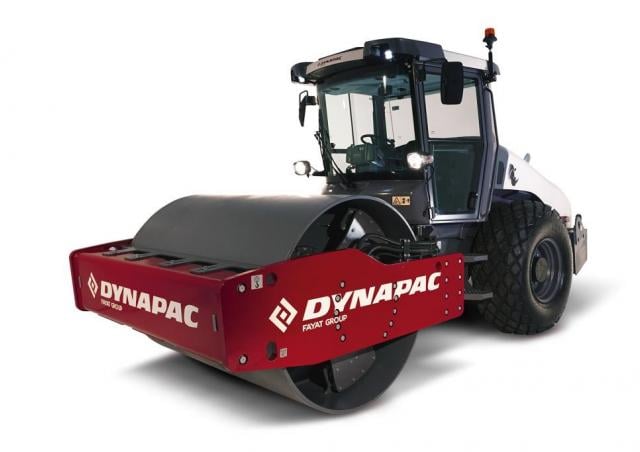

CA25D Rhino Dynapac CA25D Rhino Specifications & Technical Data (2023—2026)
Visit Dynapac live at
.jpg){kind=logo}
Technical specs - CA25D Rhino Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.1 t
- Transport length
- 5.56 m
- Transport width
- 2.256 m
- Transport height
- 2.89 m
- Vibration
- e
- Drive
- A
- Travel speed
- 11 km/h
- Frequency
- 33 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.498 m
- Turning radius outside
- 5.65 m
- Turning radius inside
- 3.255 m
- Statical line load
- 26 kg/cm
- Centrifugal force
- 250 kN
- Model series
- CA
- Engine manuf.
- Cummins
- Engine type
- 4BT3.9-102C
- Engine power
- 76 kW
More technical details, like: amplitude, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Dynapac CA25D Rhino FAQ
How much does the Dynapac CA25D Rhino weigh?
What are the transport dimensions of the Dynapac CA25D Rhino single-drum roller?
What is the travel speed of the Dynapac CA25D Rhino?
What type of drive system does the Dynapac CA25D Rhino have in its undercarriage?
What are the turning radius specifications for the Dynapac CA25D Rhino roller?
What are the compaction capabilities of the Dynapac CA25D Rhino single-drum roller?
What are the roller specifications of the Dynapac CA25D Rhino single-drum roller?
How much is a Dynapac CA25D Rhino Single-drum Roller (2023u20132025) worth?
