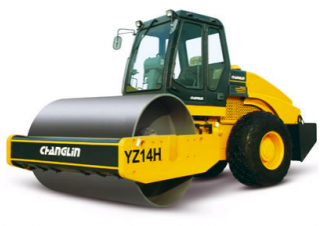

YZ14H Changlin YZ14H Specifications & Technical Data (2017—2026)
.png)
Technical specs - YZ14H Changlin
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14 t
- Transport length
- 6 m
- Transport width
- 2.3 m
- Transport height
- 3.055 m
- Travel speed
- 12.1 km/h
- Frequency
- 31 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.722 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.88 m
- Model series
- YZ
- Engine manuf.
- Cummins
- Engine type
- 6BT5.9-C150
- Engine power
- 110 kW
- Displacement
- 5.9 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 590 Nm
- No. of cylinders
- 2
- Cylinder bore x stroke
- 102x120 mm
More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
