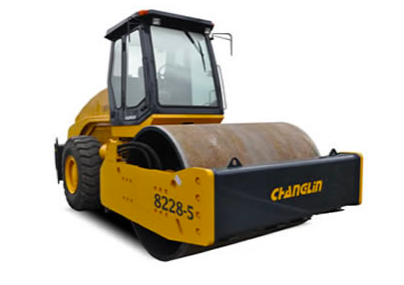

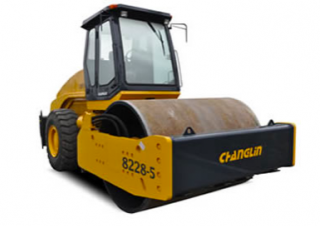

8228-5 Changlin 8228-5 Specifications & Technical Data (2017—2026)

Weight: 22t – Transport length: 6.46m – Transport width: 2.41m – Transport height: 3.335m – Travel speed: 11.8km/h – Frequency: 32Hz

Rollers Single-drum Rollers Changlin 8228-5

Technical specs - 8228-5 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
6.46 m
Transport width
2.41 m
Transport height
3.335 m
Travel speed
11.8 km/h
Frequency
32 Hz
Roller width
2.15 m
Rollers Ø
1.55 m
Amplitude
2.1 mm
Turning radius outside
7 m

More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Changlin 8228-5 FAQ

When was the Changlin 8228-5 manufactured?

The Changlin 8228-5 was first produced in 2017.

How much does the Changlin 8228-5 weigh?

The Changlin 8228-5 weighs 22 tons.

What are the transport dimensions of the Changlin 8228-5 single-drum roller?

The Changlin 8228-5 has a transport length of 6.46 meters, a transport width of 2.41 meters, and a transport height of 3.34 meters.

What is the travel speed of the Changlin 8228-5 single-drum roller?

The Changlin 8228-5 has a travel speed of 11.8 km/h.

What is the outside turning radius of the Changlin 8228-5 single-drum roller?

The Changlin 8228-5 has an outside turning radius of 7 meters.

What are the key compaction performance specifications of the Changlin 8228-5?

The Changlin 8228-5 operates at a vibration frequency of 32 Hz and has an amplitude of 2.1 mm.

What are the roller specifications of the Changlin 8228-5 single-drum roller?

The Changlin 8228-5 has a roller width of 2.15 meters and a roller diameter of 1.55 meters.

How much is a Changlin 8228-5 Single-drum Roller (2017u20132025) worth?

The residual value of the Changlin 8228-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
