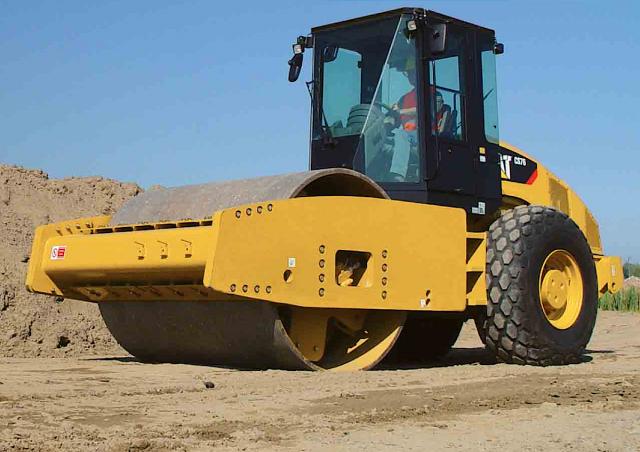

CS76 Caterpillar CS76 Specifications & Technical Data (2007—2026)
Technical specs - CS76 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.99 t
- Transport length
- 6.13 m
- Transport width
- 2.34 m
- Transport height
- 3.07 m
- Travel speed
- 11.4 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.52 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.81 m
- Turning radius inside
- 3.68 m
- Statical line load
- 50 kg/cm
- Centrifugal force
- 332 kN
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- C6.6 Acert
- Engine power
- 130 kW
- Displacement
- 6.6 l
- Cylinder bore x stroke
- 100x127 mm
- Emission level
- IIIA
More technical details, like: vibration, drive, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
