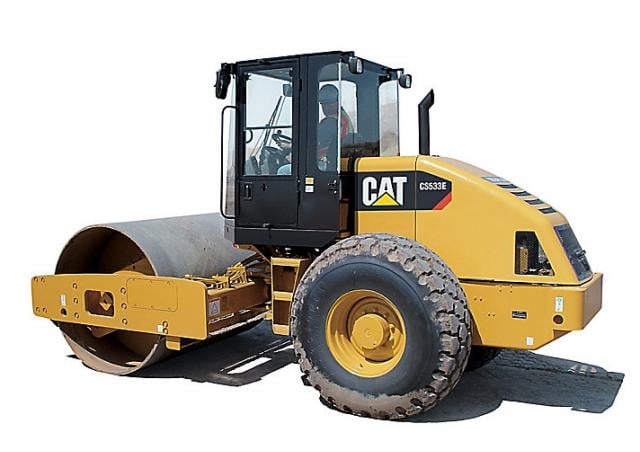

CS533E XT Caterpillar CS533E XT Specifications & Technical Data (2019—2026)
Technical specs - CS533E XT Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.36 t
- Transport length
- 5.51 m
- Transport width
- 2.36 m
- Transport height
- 3.07 m
- Travel speed
- 12 km/h
- Frequency
- 31 Hz
- Roller width
- 2.134 m
- Rollers Ø
- 1.534 m
- Amplitude
- 1.8 mm
- Turning radius outside
- 5.81 m
- Turning radius inside
- 3.68 m
- Statical line load
- 32 kg/cm
- Centrifugal force
- 234 kN
- Model series
- CS
- Engine manuf.
- Caterpillar
- Engine type
- 3054C
- Engine power
- 97 kW
- Emission level
- Tier 4 f
More technical details, like: vibration, drive, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
