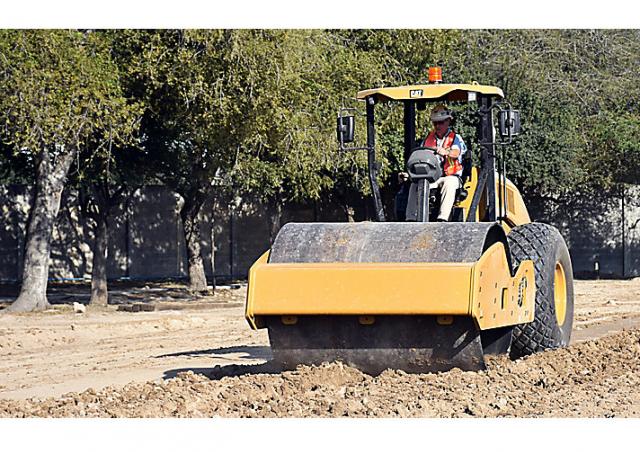

CS12 GC Caterpillar CS12 GC Specifications & Technical Data (2019—2026)

Weight: 12.23t – Transport length: 5.7m – Transport width: 2.3m – Transport height: 2.99m – Travel speed: 11.2km/h – Frequency: 33Hz

Rollers Single-drum Rollers Caterpillar CS12 GC

CS12 GC

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CS12 GC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.23 t

Transport length: 5.7 m

Transport width: 2.3 m

Transport height: 2.99 m

Travel speed: 11.2 km/h

Frequency: 33 Hz

Roller width: 2.134 m

Rollers Ø: 1.534 m

Amplitude: 2 mm

Turning radius outside: 3.86 m

Centrifugal force: 250 kN

Model series: CS

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 83 kW

Displacement: 4.4 l

Cylinder bore x stroke: 127x105 mm

Emission level: Tier 4 f

More technical details, like: vibration, drive, turning radius inside, statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar CS12 GC FAQ

When was the Caterpillar CS12 GC manufactured?

The Caterpillar CS12 GC was first produced in 2019.

How much does the Caterpillar CS12 GC weigh?

The Caterpillar CS12 GC weighs 12.23 tons.

What are the transport dimensions of the Caterpillar CS12 GC single-drum roller?

The Caterpillar CS12 GC has a transport length of 5.7 meters, a transport width of 2.3 meters, and a transport height of 2.99 meters.

What is the travel speed of the Caterpillar CS12 GC single-drum roller?

The Caterpillar CS12 GC has a travel speed of 11.2 km/h.

What is the turning radius of the Caterpillar CS12 GC single-drum roller?

The Caterpillar CS12 GC has an outside turning radius of 3.86 meters.

What are the compaction capabilities of the Caterpillar CS12 GC single-drum roller?

The Caterpillar CS12 GC operates at a frequency of 33 Hz, has an amplitude of 2 mm, and generates a centrifugal force of 250 kN in its compaction system.

What are the roller specifications of the Caterpillar CS12 GC single-drum roller?

The Caterpillar CS12 GC has a roller width of 2.13 meters and a roller diameter of 1.534 meters.
