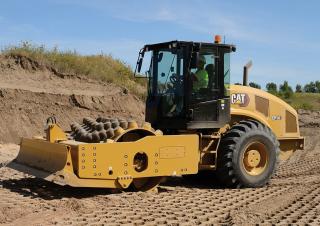

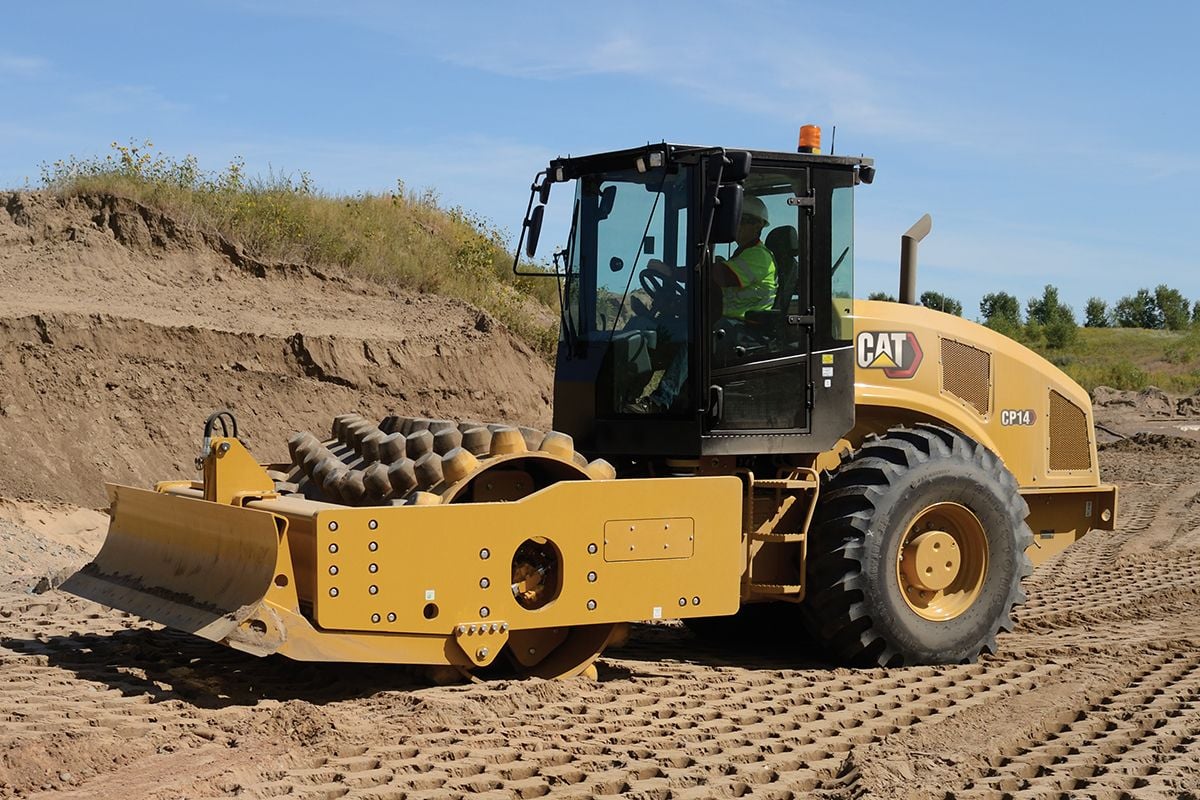

CP14 Caterpillar CP14 Specifications & Technical Data (2023—2026)
Technical specs - CP14 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14.7 t
- Travel speed
- 11 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.54 m
- Amplitude
- 2.1 mm
- Turning radius inside
- 3.6 m
- Statical line load
- 42 kg/cm
- Centrifugal force
- 301 kN
- Engine manuf.
- Caterpillar
- Engine type
- C4.4
- Engine power
- 117 kW
- Displacement
- 4.4 l
- Emission level
- EU V
More technical details, like: transport length, transport width, transport height, vibration, drive, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
