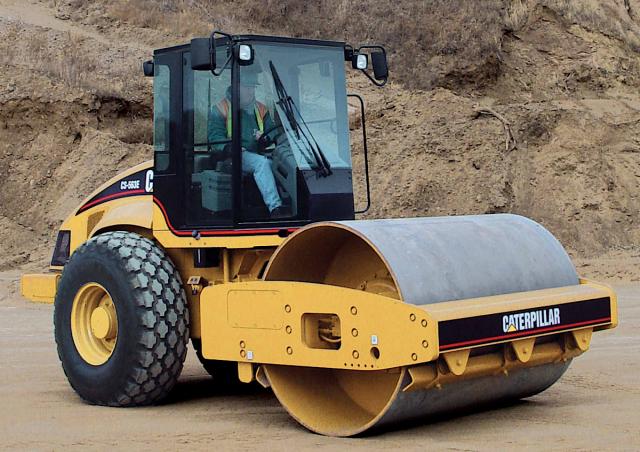

CP-563E Caterpillar CP-563E Specifications & Technical Data (2003—2026)
Technical specs - CP-563E Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.2 t
- Transport length
- 5.76 m
- Transport width
- 2.29 m
- Transport height
- 3.07 m
- Travel speed
- 11.6 km/h
- Frequency
- 31.9 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.3 m
- Amplitude
- 1.7 mm
- Turning radius outside
- 5.81 m
- Turning radius inside
- 3.68 m
- Statical line load
- 27.4 kg/cm
- Centrifugal force
- 266 kN
- Model series
- CP
- Engine manuf.
- Caterpillar
- Engine type
- 3056E ATA AC
- Engine power
- 112 kW
- Displacement
- 5.98 l
- No. of cylinders
- 6
- Cylinder bore x stroke
- 100x127 mm
- Emission level
- Tier 4 f
More technical details, like: vibration, drive, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
